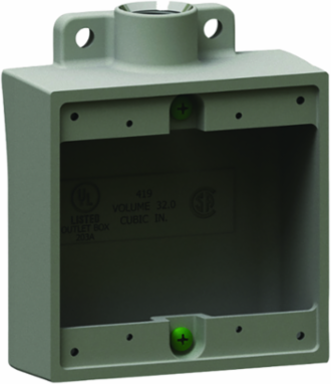

Killark 2FS-2 Aluminum Two Gang Shallow Device Box, 3/4 Inch Hub Size, Powder Epoxy Finish
- MPN: 2FS-2
- UPC: 783936190051
- PPN: HBL-2FS-2
- UNSPSC: 39131708
CAD
$132.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
3/4"Aluminum, 2FS Type Two Gang Shallow Device Box
Features
- Tapered threads (NPT with integral bushings)
- Internal grounding screw
- Mounting feet are provided as standard
- Suitable for use in wet locations when used with gasket covers
- Cast iron is suitable for concrete use
- Tapered threads (NPT with integral bushings). Internal grounding screw. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42). Volume is 32 cu. in.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Application | Accomodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes. |
| Finish | Powder Epoxy Paint |
| Hub Size | 3/4" |
| Special Features | Tapered threads (NPT with integral bushings). Internal grounding screw. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42). Volume is 32 cu. in. |
| Width | 1 in |
| Engineering Drawing 1 Display Text | 2FS-2 Engineering Drawing |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | DEVICE BOX 2GANG SHLW AL 3/4" |
| Harmonization Code | 7616995190 |
| Lead Time | 42 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D30D233 |
| Gross Weight with Packaging | 0.98 |
| UL File Number | E3397 |
| Series | F Series |
| BOX SIZE | 4.125x11.875x7.375 (in) |
| Carton - Number of Sub Packs | 2 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936190051 |
| Master Pack Description | Each |
| Dimensions | 1 in x 1 in x 2 in |
|---|---|
| Color | Gray |
| Height | 2 in |
| Length | 1 in |
| Type | Device Box |
| Weight | 0.98 lb. |
| Finish Type | Powder Epoxy Paint |
| Class Code | D30 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| CSA File Number | LR11852 |
| Hub Pattern | Dead-End |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 1.960 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 2 EA |
| NAICS Code | 3359326103 |
