Killark FDC-2 3 4 Inch Aluminum Deep Feed Thru Device Box, 1 Outlet, Suitable for Wet Locations
- MPN: FDC-2
- UPC: 783936150086
- PPN: HBL-FDC-2
- UNSPSC: 39121308
CAD
$63.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

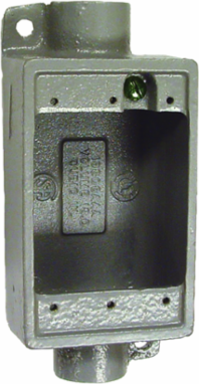

¾"Aluminum, Deep Feed Thru Device Box
Features
- Tapered threads (NPT with integral bushings)
- Internal grounding screw
- Mounting feet are provided as standard
- Suitable for use in wet locations when used with gasket covers
- Cast iron is suitable for concrete use
- Tapered threads (NPT with integral bushings). Internal grounding screw. Optional mounting feet available. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Height | 3 in |
| Length | 1 in |
| Color | Gray |
| Size | 1 in x 1 in x 3 in |
| Type | Device Box |
| Width | 1 in |
| Finish Type | Powder Epoxy Paint |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | 3/4" FEED THRU DEEP ALUM |
| Harmonization Code | 7616995190 |
| Lead Time | 42 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D30D233 |
| Gross Weight with Packaging | 0.99 |
| UL File Number | E3397 |
| Series | F Series |
| BOX SIZE | 5.000x15.250x6.875 (in) |
| Carton - Number of Sub Packs | 5 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936150086 |
| Master Pack Description | Each |
| Dimensions | 1 in x 1 in x 3 in |
|---|---|
| Hub Size | 3/4" |
| Application | Accommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes. |
| Number of Outlet | 1 |
| Special Features | Tapered threads (NPT with integral bushings). Internal grounding screw. Optional mounting feet available. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42). |
| Weight | 0.99 lb. |
| Engineering Drawing 1 Display Text | FDC-2 Engineering Drawing |
| Number Of Outlets | 1 |
| Class Code | D30 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| CSA File Number | LR11852 |
| Hub Pattern | Feed-Thru |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 4.950 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 5 EA |
| NAICS Code | 3359326103 |
