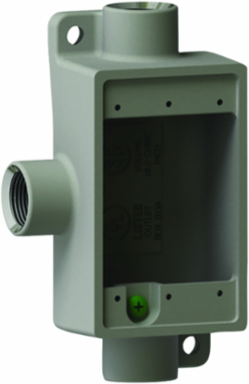

Killark FSCT-2 3/4 Inch Aluminum Device Box, 11.75 x 7.25 x 4.125 Inch, Single Outlet
- MPN: FSCT-2
- UPC: 783936190273
- PPN: HBL-FSCT-2
- UNSPSC: 39121308
CAD
$115.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
3/4"Aluminum, FSCT Type Shallow Device Box
Features
- Tapered threads (NPT with integral bushings)
- Internal grounding screw
- Mounting feet are provided as standard
- Suitable for use in wet locations when used with gasket covers
- Cast iron is suitable for concrete use
- Tapered threads (NPT with integral bushings). Internal grounding screw. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 4.125 in
- Length
- 11.75 in
- Color
- Gray
- Size
- 11.75 in x 7.25 in x 4.125 in
- Type
- Device Box
- Width
- 7.25 in
- Finish Type
- Powder Epoxy Paint
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- FSCT 3/4" AL SHALL DEV BOXX
- Harmonization Code
- 7616995190
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D233
- Gross Weight with Packaging
- 0.74
- UL File Number
- E3397
- Series
- F Series
- BOX SIZE
- 4.125x11.750x7.250 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936190273
- Master Pack Description
- Each
Dimensions11.75 in x 7.25 in x 4.125 in
Hub Size3/4"
ApplicationAccommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
Number of Outlet1
Special FeaturesTapered threads (NPT with integral bushings). Internal grounding screw. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
Weight0.74 lb.
Engineering Drawing 1 Display TextFSCT-2 Engineering Drawing
Number Of Outlets1
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11852
Hub PatternFSCT
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.700 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Contact Manufacturer
