Killark FSL-2 Aluminum Device Box 3/4 Inch, 1 Outlet, 1 in x 1 in x 2 in Dimensions
- MPN: FSL-2
- UPC: 783936190297
- PPN: HBL-FSL-2
- UNSPSC: 39121308
CAD
$78.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

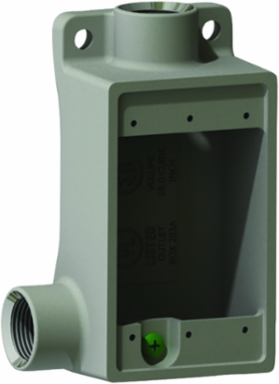

3/4"Aluminum, FSL Type Shallow Device Box
Features
- Tapered threads (NPT with integral bushings)
- Internal grounding screw
- Mounting feet are provided as standard
- Suitable for use in wet locations when used with gasket covers
- Cast iron is suitable for concrete use
- Tapered threads (NPT with integral bushings). Internal grounding screw. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
Documentation & Downloads
Specifications
Key Specifications
- Number of Outlet
- 1
- Special Features
- Tapered threads (NPT with integral bushings). Internal grounding screw. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
- Country of Origin
- United States
- Dimensions
- 1 in x 1 in x 2 in
- Hub Size
- 3/4"
- Width
- 1 in
- Application
- Accommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
- Number Of Outlets
- 1
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11852
- Hub Pattern
- FSL
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 18.875 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25
- NAICS Code
- 3359326103
Size1 in x 1 in x 2 in
ARRA CompliantContact Manufacturer
ColorGray
Height2 in
Length1 in
Engineering Drawing 1 Display TextFSL-2 Engineering Drawing
Finish TypePowder Epoxy Paint
TypeDevice Box
Description - InvoiceFSL 3/4" AL SHALL FEED THRU
Harmonization Code7616999999
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D233
Gross Weight with Packaging0.755
UL File NumberE3397
SeriesF Series
BOX SIZE2.000x1.000x1.000 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack00783936190297
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
