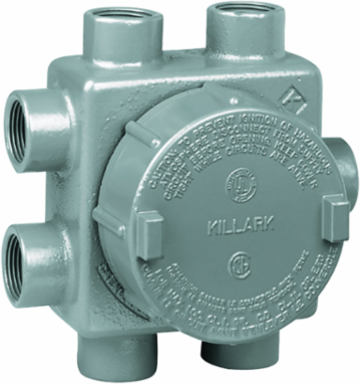

Killark GRSA Aluminum Outlet Body with Blank Cover 3/4 Inch, Size: 6.25 in x 6 in x 4.25 in
- MPN: GRSA
- UPC: 783936230115
- PPN: HBL-GRSA
- UNSPSC: 39121314
CAD
$317.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
3/4" Aluminum GR Outlet Body, W/ Blank AL Cover
Features
- Cast conduit hubs with integral bushings
- Cover included
- Replacement cover catalog number GECBC
- Five close-up plugs included
- Sealing, hub, dome covers and gaskets available
- Cast conduit hubs with integral bushings. Cover included. Five close-up plugs included. Sealing, hub, dome covers, and gaskets available (page F56).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Application
- Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
- Length
- 6.25 in
- Special Features
- Cast conduit hubs with integral bushings. Cover included. Five close-up plugs included. Sealing, hub, dome covers, and gaskets available (page F56).
- Width
- 6 in
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- UL File Number
- E10514
- Series
- GR Outlet Bodies Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Dimensions6.25 in x 6 in x 4.25 in
Height4.25 in
ColorGray
Size6.25 in x 6 in x 4.25 in
TypeOutlet Body With Cover
Cover TypeBlank
ARRA CompliantContact Manufacturer
Description - InvoiceBODY, OUTLET 3/4 W/BLANK CVR, AL
Harmonization Code7609000000
Lead Time30 wk
Order Multiple1 EA
Sub Class CodeD30D237
Gross Weight with Packaging2.75
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936230115
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Contact Manufacturer
