Steel City

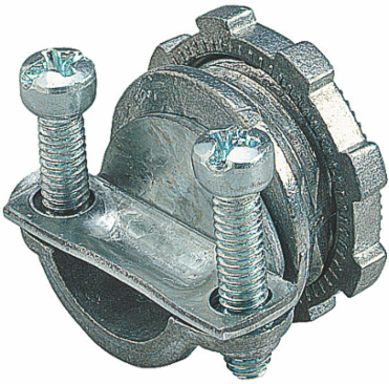

Steel City NC302 Clamp Type Connectors

Clamp Type Connectors
  • MPN: NC302
  • UPC: 078599142753
  • PPN: T-B-NC302

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1.62/ EA

Description

Connector, Clamp-Type, Conduit Size 3/4 Inch, Clamping Range 0.41 Inch - 0.82 Inch, Width 1.87 Inch, Die Cast Zinc

Specifications

European Specifications (ETIM)

ETIM
EC001180 Screw connection for protective metallic hose
Model
Straight
Construction type
External thread
One-piece
Y
Surface protection
Untreated
Approved in combination with protective conduit FI
N
Nominal size in inch3/4 inch
Revolving threadN
Connection type screw connection to housingThread
Material housingZinc die-cast
Approved in combination with protective conduit DIN EN 61386-23N

North American Specifications (UNSPSC)

UNSPSC
39121311 Electrical fittings
Brand Name
Steel City
Application
For use with non-metallic sheathed cable
Size
3/4 Inch
IGCC4441 Electrical fittings
TypeClamp Type Connectors
StandardUL e17583
MaterialZinc Die Cast

Packaging

Inner Quantity
50
Outer Quantity
500
Weight Uom
12 lbs. per 100
Inner Dimensions (inches)7.5x5.5x3.75
Outer Dimensions (inches)18.8x11.4x8.6
