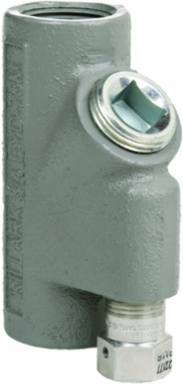

Killark EYD-75 3/4 Inch Drain Seal Fitting, Aluminum, NPT Threads, Copper-Free
- MPN: EYD-75
- UPC: 783936090382
- PPN: HBL-EYD-75
- UNSPSC: 39131708
CAD
$284.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
3/4" EYD Drain Seal Fitting Aluminum, Female/Female
Features
- Threaded for Rigid Conduit or IMC
- Tapered threads (NPT)
- Simple to install.
- Internal drainage path provides a visual means to ensure that the compound chamber is properly filled.
- Large cover openings for easy packing of fiber dam.
- Temporary plastic sleeve protects thread for drain/breather from contamination when pouring compound.
- Unique design enables installation of drain/breather right after compound is poured.
- Provides continuous water drain path while allowing conduit run to breathe, in compliance with the NEC.
- Includes Drain Breather Fitting KDB-375.
- Copper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Color
- Gray
- Height
- 0.1 in
- Length
- 5 in
- Type
- Sealing Fitting
- General Literature Asset 1 Display Text
- Hazardous-rated seal-off fittings in expanded trade sizes and with improved design
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 0.75
- Series
- EYD Series
- BOX SIZE
- 3.750x11.000x7.000 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936090382
- Master Pack Description
- Each
Dimensions5 in x 10 in x 0.1 in
ApplicationClass I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to
FinishPowder Epoxy Paint
Hub Size3/4"
Special FeaturesCopper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
Width10 in
General Literature Asset 2 Display TextENY EYD Cross Reference Guide
ARRA CompliantContact Manufacturer
Description - InvoiceSEAL FTG AL 3/4" FEMAL/FEMAL DRAIN
Harmonization Code7609000000
Lead Time49 wk
Order Multiple1 EA
Sub Class CodeD30D237
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack7.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
NAICS Code3359323114
