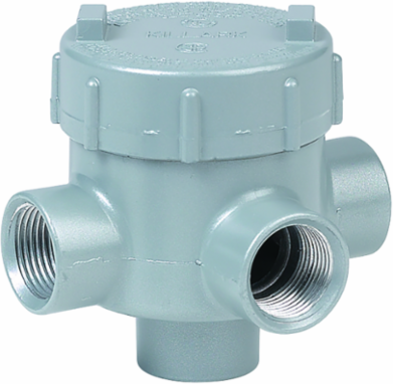

Killark GEMTA-2 ¾ Inch GEM Outlet Body TA Type, Aluminum, Weather-Resistant, 11 in x 7 in x 3.75 in
Killark GEMTA-2 ¾ Inch GEM Outlet Body TA Type, Aluminum, Weather-Resistant, 11 in x 7 in x 3.75 in
- MPN: GEMTA-2
- UPC: 783936211343
- PPN: HBL-GEMTA-2
- UNSPSC: 39121314
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$97.58/ EA
Description
¾" GEM Outlet Body TA Type
Features
- Water shedding cover – suitable for wet locations when mounted in upright position.
- External cover threads on body protecting conductors from damage during pulling.
- No pinching of conductors during cover installation.
- Taper threaded hubs to provide ground continuity.
- Smooth integral hub bushing to protect conductor insulation when pulling.
- Internally threaded cover openings for additional wiring room.
- Covers furnished with boxes.
- Weather-resistant finish.
- Green ground screw standard.
- GE conduit outlet boxes have: GEM Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal
Specifications
Specifications
- Country of Origin
- MX
- Each - Width
- 7.000 in
- Height
- 3.75 in
- Application
- Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
- Length
- 11 in
- Special Features
- GE conduit outlet boxes have: GEM Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal
- Width
- 7 in
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 3/4" ALUM OUTLET BODY TA TYPE
- Harmonization Code
- 7609000000
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Gross Weight with Packaging
- 0.8
- UL File Number
- E10514
- Series
- GE Series
- BOX SIZE
- 4.000x12.000x7.250 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936211343
- Master Pack Description
- Each
Dimensions11 in x 7 in x 3.75 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA
Hub Size3/4"
ColorGray
Size11 in x 7 in x 3.75 in
TypeOutlet Body With Cover
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
Hub PatternTA
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack4.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
