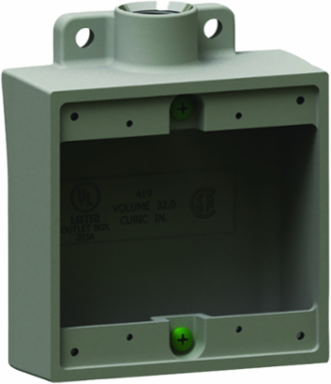

Killark 2FS-2M Two Gang Shallow Device Box 8.75 Inch x 5.125 Inch x 3 Inch, Iron, Wet Location Suitable
- MPN: 2FS-2M
- UPC: 783936048758
- PPN: HBL-2FS-2M
- UNSPSC: 39121308
CAD
$151.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
3/4"Iron, 2FS Type Two Gang Shallow Device Box
Features
- Tapered threads (NPT with integral bushings)
- Internal grounding screw
- Mounting feet are provided as standard
- Suitable for use in wet locations when used with gasket covers
- Cast iron is suitable for concrete use
- Tapered threads (NPT with integral bushings). Internal grounding screw. Two gang style. Suitable for use in wet locations when used with gasket covers. Cast iron is suitable for concrete use. For use with FS-style covers (see pages F40-F42).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Height
- 3 in
- Length
- 8.75 in
- Color
- Gray
- Size
- 8.75 in x 5.125 in x 3 in
- Type
- Device Box
- Finish Type
- Powder Epoxy Paint
- Number Of Outlets
- 2
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11852
- Hub Pattern
- Dead-End
- Material
- Iron
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936048758
- NAICS Code
- 3359326103
Dimensions8.75 in x 5.125 in x 3 in
Hub Size3/4"
ApplicationAccommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
Number of Outlet2
Special FeaturesTapered threads (NPT with integral bushings). Internal grounding screw. Two gang style. Suitable for use in wet locations when used with gasket covers. Cast iron is suitable for concrete use. For use with FS-style covers (see pages F40-F42).
Width5.125 in
Nema Rating7 (C, D)
ARRA CompliantContact Manufacturer
Description - InvoiceDEVICE BOX 2GANG SHLW FE 3/4"
Harmonization Code7326908688
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D233
Gross Weight with Packaging3.08
UL File NumberE3397
SeriesF Series
BOX SIZE(in)
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
