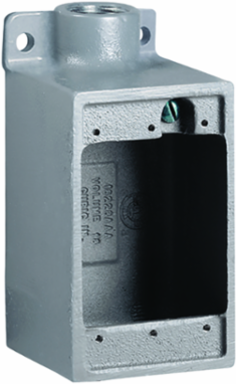

Killark FD-2M ¾ Inch Iron Deep Dead End Device Box, 7.75 Inch Length, 3.5 Inch Width, Powder Epoxy Paint
- MPN: FD-2M
- UPC: 783936048543
- PPN: HBL-FD-2M
- UNSPSC: 39131708
CAD
$60.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
¾"Iron, Deep Dead End Device Box
Features
- Tapered threads (NPT with integral bushings)
- Internal grounding screw
- Mounting feet are provided as standard
- Suitable for use in wet locations when used with gasket covers
- Cast iron is suitable for concrete use
- Tapered threads (NPT with integral bushings). Internal grounding screw. Optional mounting feet available. Single gang style. Suitable for use in wet locations when used with gasket covers. Cast iron is suitable for concrete use. For use with FS-style cove
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- India
- Application
- Accommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
- Finish
- Powder Epoxy Paint
- Hub Size
- 3/4"
- Special Features
- Tapered threads (NPT with integral bushings). Internal grounding screw. Optional mounting feet available. Single gang style. Suitable for use in wet locations when used with gasket covers. Cast iron is suitable for concrete use. For use with FS-style cove
- Width
- 3.5 in
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11852
- Hub Pattern
- Dead-End
- Material
- Iron
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936048543
- NAICS Code
- 3359326103
Dimensions7.75 in x 3.5 in x 3.5 in
ColorGray
Height3.5 in
Length7.75 in
TypeDevice Box
Weight2.87 lb.
ARRA CompliantContact Manufacturer
Description - Invoice3/4" DEAD END DEEP IRON
Harmonization Code7326908688
Lead Time28 wk
Order Multiple1 EA
Sub Class CodeD30D233
Gross Weight with Packaging2.87
UL File NumberE3397
SeriesF Series
BOX SIZE(in)
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
