Description

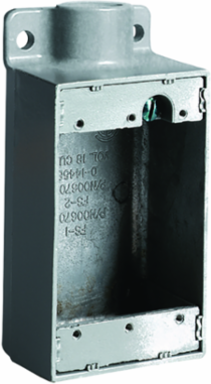

¾"Iron, Shallow Dead End Device Box
Features
- Tapered threads (NPT with integral bushings)
- Internal grounding screw
- Mounting feet are provided as standard
- Suitable for use in wet locations when used with gasket covers
- Cast iron is suitable for concrete use
- Tapered threads (NPT with integral bushings). Internal grounding screw. Optional mounting feet available. Single gang style. Suitable for use in wet locations when used with gasket covers. Cast iron is suitable for concrete use. For use with FS-style cove
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- India
- Height
- 3.5 in
- Length
- 7.75 in
- Color
- Gray
- Size
- 7.75 in x 3.5 in x 3.5 in
- Type
- Device Box
- Width
- 3.5 in
- Number Of Outlets
- 1
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11852
- Hub Pattern
- Dead-End
- Material
- Iron
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936048727
- NAICS Code
- 3359326103
Dimensions7.75 in x 3.5 in x 3.5 in
Hub Size3/4"
ApplicationAccommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
Number of Outlet1
Special FeaturesTapered threads (NPT with integral bushings). Internal grounding screw. Optional mounting feet available. Single gang style. Suitable for use in wet locations when used with gasket covers. Cast iron is suitable for concrete use. For use with FS-style cove
Weight2.29 lb.
Finish TypePowder Epoxy Paint
ARRA CompliantContact Manufacturer
Description - Invoice3/4" DEAD END SHALLOW IRON
Harmonization Code7326908688
Lead Time28 wk
Order Multiple1 EA
Sub Class CodeD30D233
Gross Weight with Packaging2.29
UL File NumberE3397
SeriesF Series
BOX SIZE(in)
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
