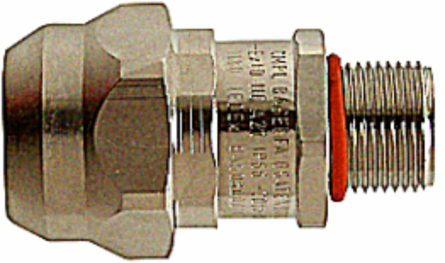

Kopex-ex EXBQA0505 Fixed, Straight Conduit Fitting
- MPN: EXBQA0505
- UPC: 786210287133
- PPN: T-B-EXBQA0505
CAD
$283.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Conduit Fitting, Fixed Straight with External Male Thread, Conduit Size 25mm, 3/4 Inch NPT Thread, Suitable for Braided Nylon Conduit, Zone 1 and 2, Zone 21 and 22, IP66 Rating, Nickel Plated Brass
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Nominal size in inch
- 3/4 inch
- Model
- Straight
- Construction type
- External thread
- Thread type
- NPT
- Thread length
- 20.2mm
- Material
- Other
- Colour
- Other
Nominal diameter25mm
Degree of protection (IP)IP66
Revolving threadN
Type of connectionThread
Thread connection sizeOther
Total length38mm
Material sealingOther
Packaging
- Inner Quantity
- 10
- Outer Dimensions (inches)
- 14x14x6
Outer Quantity100
Weight Uom0.61 lbs. Each
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Kopex
- Application
- For Insertion Into Threaded Entries and Knockouts Using a Locknut to Secure
- Size
- Conduit Size 25mm
- Insulation Class
- IP66
- Color
- Metallic
- Temperature Rating
- Static: -20 to 80 Degrees C
IGCC4441 Electrical fittings
TypeFixed, Straight Conduit Fitting
StandardATEX :- Baseefa08 ATEX003x, IECEx :- IECEx BAS08.001X
MaterialBrass
FinishNickel Plated
ConnectionStraight, 3/4 Inch NPT Thread
