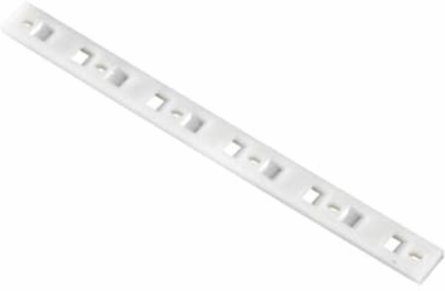

Ty-Rap TC1103 Natural Nylon Multiple Bundle Mounting Strip 4.2 Inch x 0.5 Inch, Screw Mounting
- MPN: TC1103
- UPC: 786210826424
- PPN: T-B-TC1103
- UNSPSC: 39121717
CAD
$2.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Multiple Bundle Mounting Strip, Natural Nylon 6.6 for Temperatures up to 85 Degrees Celsius (185 F), Length of 107mm (4.2 Inches), Width of 12.7mm (0.50 Inch), Thickness of 3.17mm (0.125 Inch), Two-Screw Mounting Method, #6 Screw, Maximum Tie Width 4.82mm (0.19 Inch)
Specifications
Additional Information
| Brand / Label | Ty-Rap |
|---|---|
| Color | Natural |
| Material | Nylon/Polyamide 6.6 |
| Process Temperature Rating | -40 to +185 °F |
| Product Type | Multiple Bundle Mounting Strip |
| Special Functions | These nylon mounting strips for parallel installation of wire bundles can accommodate up to six closely spaced bundles. |
| Cable Size | 0.19 in4.82 mm |
|---|---|
| Effective Date | 19750903 |
| Mounting Type | Screw |
| Product Name | TY-RAP FASTENING |
| RoHS Date | 9AKK107992A8808 |
| Standards | UL E49405 |
Ordering
| Country of Origin | United Kingdom (GB)United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 5065 >> Cable tie mounts |
|---|
