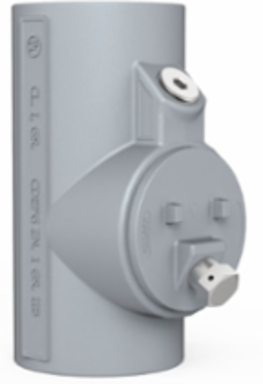

Killark EYD-8M Drain Seal Fitting Iron, Female/Female, 3 Inch Hub Size, 11.07 lb Weight
Killark EYD-8M Drain Seal Fitting Iron, Female/Female, 3 Inch Hub Size, 11.07 lb Weight
- MPN: EYD-8M
- UPC: 783936111704
- PPN: HBL-EYD-8M
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1021.69/ EA
Description
Killark’s EYD drain sealing fittings offers options for installing in vertical positions for harsh hazardous locations where there is a probability that liquid or other condensed vapor may be trapped within enclosures or in the conduit raceway system. EYD series can make any sealing needs significant by offering a minimized turn radius for maximized installations. Options are available in copper-free aluminum and Duraloy iron with superior electro-statically applied powder coating for the best corrosive resistance.
Features
- Threaded for Rigid Conduit or IMC
- Tapered threads (NPT)
- Simplified installation
- Internal drainage path provides a visual means to ensure that the compound chamber is properly filled
- Temporary plastic sleeve protects thread for drain/breather from contamination when pouring compound
- Unique design enables installation of drain/breather right after compound is poured – no waiting
- Provides continuous water drain path while allowing conduit run to breathe, in compliance with the NEC
- Includes Drain Breather Fitting KDB-1
- Duraloy iron. Tri-coat finish of electrozinc, chromate sealant, and electrostatically applied powder coating.
Specifications
Specifications
- Country of Origin
- MX
- Each - Width
- 10.000 in
- Ratings
- 3R
- Color
- Gray
- Height
- 8.52 in
- Length
- 5 in
- Type
- Sealing Fitting
- Weight
- 11.07 lb.
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- SEAL FTG FE 3" DRAIN
- Harmonization Code
- 7307110030
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Gross Weight with Packaging
- 12
- Material
- Zinc Plated Iron
- Base Unit of Measure
- EA
- Master Pack Description
- Each
Dimensions5 in x 4.125 in x 8.52 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups B, C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
ApplicationTo minimize the passage of gases and vapors from one electrical installation to another through the conduit system while offering a degree of ventilation and draining of condensation. To confine any explosions from sealed enclosures and prevent pressure pilling between conduit systems.
FinishPowder Epoxy Paint
Hub Size3"
Special FeaturesDuraloy iron. Tri-coat finish of electrozinc, chromate sealant, and electrostatically applied powder coating.
Width4.125 in
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
UL File NumberE10514
SeriesEYD Series
Carton - SCC-14 Next Lower Level Sub Pack00783936111704
Certifications
- EU RoHS Indicator
- Contact Manufacturer
