Brady PLO23 3-In-1 Plug Lockout Device for Cords Up to 5.5 Inch Long, 3 Inch Diameter
- MPN: PLO23
- UPC: 754473458423
- PPN: BRD-PLO23
- UNSPSC: 39121906
CAD
$26.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

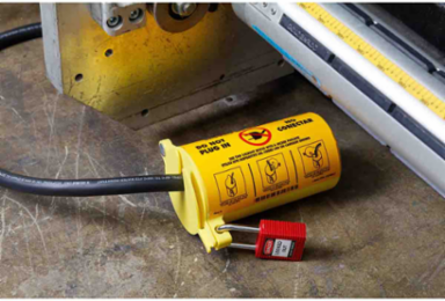

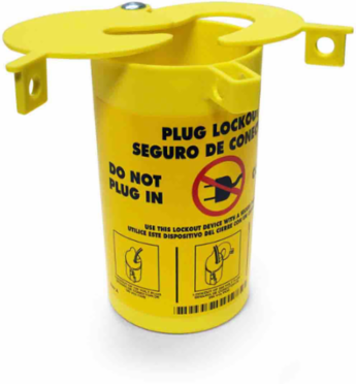

3-In-1 Plug Lockout accommodates high and low-voltage plugs up to 3 in. in diameter and 5-1/2 in. in length.
Features
- The 3-In-1 Plug Lockout has 2 rotating top lids that can be used individually or together to fit small, medium & large-diameter cords up to 1-1/4 in.
- Plug lockout is made of bright yellow thermoplastic material
- Equipping your employees with the proper lockout tools and warning devices can save lives, reduce lost employee time, and cut insurance costs
- Brady® is a world leader in lockout/tagout products and services offering industry expertise and a broad range of durable, easy-to-use lockout devices
Documentation & Downloads
Specifications
Key Specifications
| Barcode (Printed on Liner) | No |
|---|---|
| Color | Yellow |
| Labels Supplied | Yes |
| Maximum Number of Padlocks | 1 |
| Primary Noun, Basic Function | Lockout Device |
| Text Legend | PLUG LOCKOUT DO NOT PLUG IN |
| Adhesive (Y/N) | No |
| Lockout Material | Thermoplastic Elastomer |
| SAP B-Number | LOTO-28 |
| Depth (mm/cm/m) | 88.14 mm |
| Dimensions | 6.25 in H x 5.2 in W x 3.5 in D |
| Height (in/ft/yd) | 6.25 in |
| Length (mm/cm/m) | 158.8 mm |
| Maximum Cord Diameter (mm/cm/m) | 31.75 mm |
| Maximum Plug Diameter (mm/cm/m) | 76.2 mm |
| Maximum Plug Length (mm/cm/m) | 139.7 mm |
| Maximum Service Temperature °C | 80 °C |
| Maximum Shackle Diameter (mm/cm/m) | 9.4 mm |
| Minimum Service Temperature °C | -20 °C |
| Plug Voltage | 125/250/600 V |
| Width (in/ft/yd) | 5.2 in |
| Brand Name | Brady® |
|---|---|
| Enables Industry Compliance | OSHA 1910.147 |
| Language | English; Spanish |
| Plug Lockout Type | Plug-Encasing |
| Risk Type | Electrical Risk |
| Total Qty per Pack | 1 Piece(s) / Pack |
| Brady Material Number | LOTO-28 |
| Material | Polypropylene |
| Depth (in/ft/yd) | 3.5 in |
| Diameter (mm/cm/m) | 88.14 mm |
| Dimensions (Metric) | 158.75 mm H x 88.14 mm Dia x 88.14 mm D |
| Height (mm/cm/m) | 158.75 mm |
| Maximum Cord Diameter (in/ft/yd) | 1.25 in |
| Maximum Plug Diameter (in/ft/yd) | 3 in |
| Maximum Plug Length (in/ft/yd) | 5.5 in |
| Maximum Plug Size (in/ft/yd) | 5.5 in L x 3 in Dia |
| Maximum Shackle Diameter (in/ft/yd) | 0.37 in |
| Maximum Wire Diameter (mm/cm/m) | 31.00 mm |
| Minimum Wire Diameter (mm/cm/m) | 31.00 mm |
| Sign Size-General | 6.25 in x 5.2 in |
| Width (mm/cm/m) | 132.08 mm |
Regulatory Information
| Contains CA PROP 65 Substance | Yes Contains-Label not req. |
|---|---|
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Not Applicable |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| Contains CA PROP 65 Substance | No |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | No |
