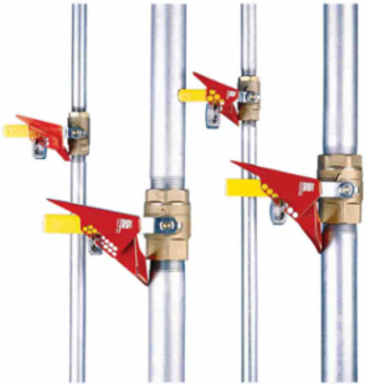

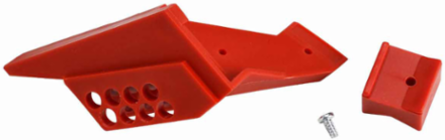

Brady 103536 Ball Valve Lockout Device 1/4 to 1 Inch Pipe Diameter, Nylon Construction
- MPN: 103536
- UPC: 754473175214
- PPN: BRD-103536
- UNSPSC: 39121909
CAD
$36.59
/ E
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The easy-to-use, single piece design of Ball Valve Lockouts from Brady® makes them the perfect tool for securing your valve handles in the off position.
Features
- Locks out ball valve sizes from 0.25in. to 1 in. (fits standard 9/32 in. lock shackle diameters)
- Made of super-tough nylon service temp -40° to 248° F (-40° to 120°C)
- Item comes in display packaging packaging for point-of-purchase displays.
Documentation & Downloads
Specifications
Key Specifications
- Ball Valve Lockout Type
- Fits over Handle
- Color
- Red
- Maximum Number of Padlocks
- 1
- Primary Noun, Basic Function
- Lockout Device
- Brady Material Number
- LOTO-23
- SAP B-Number
- LOTO-23
- Depth (mm/cm/m)
- 121.92 mm
- Dimensions (Metric)
- 68.6 mm H x 121.92 mm D
- Height (mm/cm/m)
- 68.6 mm
- Maximum Handle Thickness (mm/cm/m)
- 8.13 mm
- Maximum Handle Width (mm/cm/m)
- 25.4 mm
- Maximum Pipe Diameter (mm/cm/m)
- 25.4 mm
- Maximum Service Temperature °F
- 347 °F
- Maximum Shackle Diameter (mm/cm/m)
- 7.16 mm
- Minimum Pipe Diameter (in/ft/yd)
- 0.25 in
- Minimum Service Temperature °C
- -40 °C
- Minimum Shackle Clearance (in/ft/yd)
- 0.75 in
- Minimum Valve Size (in/ft/yd)
- 0.25 in
- Pipe Diameter Range (mm/cm/m)
- 6.35 mm to 25.4 mm
- Service Temperature Range °F
- -40 °F to 347 °F
- Valve Size Range
- 0.25 to 1 in
- Width (mm/cm/m)
- 50.8 mm
Brand NameBrady®
Enables Industry ComplianceOSHA 1910.147
Open or Closed ValveClosed
Risk TypeMechanical Risk
Lockout MaterialNylon
Depth (in/ft/yd)4.8 in
Dimensions2.7 in H x 2 in W x 4.8 in D
Height (in/ft/yd)2.7 in
Maximum Handle Thickness (in/ft/yd)0.32 in
Maximum Handle Width (in/ft/yd)1 in
Maximum Pipe Diameter (in/ft/yd)1 in
Maximum Service Temperature °C175 °C
Maximum Shackle Diameter (in/ft/yd)0.282 in
Maximum Valve Size1 in
Minimum Pipe Diameter (mm/cm/m)6.35 mm
Minimum Service Temperature °F-40 °F
Minimum Shackle Clearance - (mm/cm/m)19.05 mm
Pipe Diameter Range (in/ft/yd)1/4 to 1 in
Service Temperature Range °C-40 °C to 175 °C
Sign Size-General2.7 in x 2 in
Width (in/ft/yd)2 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Not Applicable
- Contains 3TG Mineral
- Not Applicable
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
