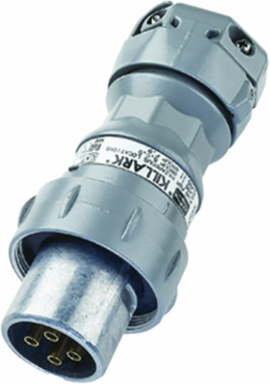

Killark VP3485 30A 3 Pole 4 Wire Pin & Sleeve Plug Assembly, 600 VAC, 3 Inch Width

30A 3 Pole 4 Wire Pin & Sleeve Plug Assembly, 600 VAC, 3 Inch Width
  • MPN: VP3485
  • UPC: 783936834061
  • PPN: HBL-VP3485

Spec sheet

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$438.72/ EA

Description

30A 3 Pole 4 Wire Plug Assembly

Features

  • Feature an octagonal body style, ensuring a sure grip when connecting or disconnecting.
  • Insulators have high mechanical and dielectric strength.
  • “Increased Safety” type box terminals with gripper ribs securely clamp around conductors.
  • Funneled conductor entry chambers lead all properly stripped conductors into terminals simultaneously.
  • Type 4X rating when inserted into VersaMate receptacle and locking ring is tightened.
  • Includes suitability for Type P marine cable.
  • VersaMate® metallic pin & sleeve plugs, receptacles, and in-line connectors are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers and similar apparatus. Suitable for indoor and outodoor use, as well as applications that include wet, cold, hosedown, hazardous and corrosive environments. Configurations are also available in reverse-service and polarized orientations.

Specifications

Amperage
30 A
Number of Wires
3
Frequency Rating
50-400 Hz
Width
3 in
Dimensions
6.68 in x 3 in x 3 in
Rating
Type 4X
Body Style
Octagonal
Mechanical Strength
High
Style
Style II
Country of Origin
United States
Voltage600 VAC; 250 VDC
Poles3
Length6.68 in
Height3 in
MaterialBody-Copper-free aluminum; Contacts-Brass; Spring tensioner-Patented beryllium copper; External screws-316 stainless steel
Cable SuitabilityType P marine
Terminal TypeIncreased Safety box terminals
Dielectric StrengthHigh
SeriesVersaMate Series
