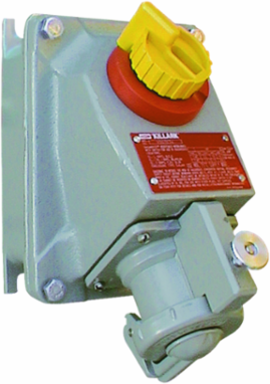

Killark VWSQ3034 30A 3W4P NEMA 4X Mechanically Interlocked Receptacle, 1" Hub Size, Aluminum Construction
- MPN: VWSQ3034
- UPC: 783936833408
- PPN: HBL-VWSQ3034
CAD
$2686.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
30A 3W4P NEMA 4X Mechanically Interlocked Receptacle
Features
- Compact size and footprint
- Plug Interlock Mechanism for Dead-Front construction. Switch cannot be turned “ON” without fully inserted plug. Plug cannot be removed with switch in “ON” position
- Factory Wired Receptacle (Load Side)
- “Off” position is padlockable for maintenance safety
- Auxiliary Contact (late-make early-break) rated 10 Amp, 1/3 HP at 125/250 VAC.
- Adjustable mounting lugs
- Feed-through construction
- Horsepower-rated internal switch
- Killark VersaMate® VWSQ Series of Switched and Interlocked receptacles provides for a receptacle solution in standard location areas. NEMA 4X weather-ingress ratings allow for indoor and outdoor use, and copper-free aluminum construction with electrostatically applied polyester/epoxy coating ensure the ultimate in corrosive resistance. Plug Interlock Mechanism for Dead-Front construction, ensuring that the switch cannot be turned on without a fully inserted plug (plug cannot be removed with switch in “ON”position, preventing possibly damaging arcs and sparks).
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Weight | 12.5 lb. |
| Nema Rating | 3, 4, 4X, 7(B, C, D), 9(F, G) |
| Number Of Wires | 4 |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | 30A 3W4P N4 HAZ INTERLOCK RECP |
| Harmonization Code | 8537109170 |
| MSDS Flag | No |
| Buy America(n) Qualified | Contact Manufacturer |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Series | VWSQ Series |
| BOX SIZE | 0.000x0.000x0.000 (in) |
| Carton - Total Units | 1 EA |
| Hub Size | 1" |
|---|---|
| Amperage Rating | 30 A |
| Number Of Poles | 3 |
| Type | Pin & Sleeve |
| Class Code | D35 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| Sub Class Code | D35D260 |
| Hub Pattern | Feed-Thru |
| Receptacle Type | Mechanically Interlocked |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936833408 |
| NAICS Code | 335931A104 |
