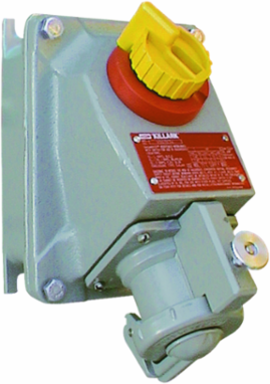

Killark VWSQ3023 30A 2W3P NEMA 4X Mechanically Interlocked Receptacle, Aluminum, 1" Hub
Killark VWSQ3023 30A 2W3P NEMA 4X Mechanically Interlocked Receptacle, Aluminum, 1" Hub
- MPN: VWSQ3023
- UPC: 783936833392
- PPN: HBL-VWSQ3023
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3060.94/ EA
Description
30A 2W3P NEMA 4X Mechanically Interlocked Receptacle
Features
- Compact size and footprint
- Plug Interlock Mechanism for Dead-Front construction. Switch cannot be turned “ON” without fully inserted plug. Plug cannot be removed with switch in “ON” position
- Factory Wired Receptacle (Load Side)
- “Off” position is padlockable for maintenance safety
- Auxiliary Contact (late-make early-break) rated 10 Amp, 1/3 HP at 125/250 VAC.
- Adjustable mounting lugs
- Feed-through construction
- Horsepower-rated internal switch
- Killark VersaMate® VWSQ Series of Switched and Interlocked receptacles provides for a receptacle solution in standard location areas. NEMA 4X weather-ingress ratings allow for indoor and outdoor use, and copper-free aluminum construction with electrostatically applied polyester/epoxy coating ensure the ultimate in corrosive resistance. Plug Interlock Mechanism for Dead-Front construction, ensuring that the switch cannot be turned on without a fully inserted plug (plug cannot be removed with switch in “ON”position, preventing possibly damaging arcs and sparks).
Specifications
Specifications
- Country of Origin
- US
- Amperage Rating
- 30 A
- Number Of Poles
- 2
- Type
- Pin & Sleeve
- Class Code
- D35
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- Sub Class Code
- D35D260
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Series
- VWSQ Series
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Carton - Total Units
- 1 EA
Hub Size1"
Nema Rating3, 4, 4X, 7(B, C, D), 9(F, G)
Number Of Wires3
ARRA CompliantContact Manufacturer
Description - Invoice30A 2W3P N4 HAZ INTERLOCK RECP
Harmonization Code8537109170
MSDS FlagNo
Hub PatternFeed-Thru
Receptacle TypeMechanically Interlocked
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936833392
Certifications
- EU RoHS Indicator
- Contact Manufacturer
