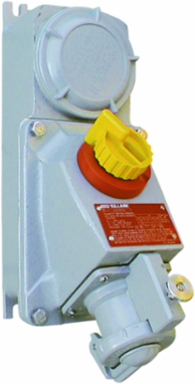

Killark VSQ3034FS 30A 3W4P Factory Sealed Hazardous Receptacle, Aluminum, Interlocked Mechanism
- MPN: VSQ3034FS
- UPC: 783936833361
- PPN: HBL-VSQ3034FS
CAD
$4519.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
30A 3W4P VSQ Factory Sealed Hazardous Interlocked Receptacle
Features
- Factory Sealed Construction
- Compact size and footprint
- Plug Interlock Mechanism for Dead-Front construction. Switch cannot be turned “ON” without fully inserted plug. Plug cannot be removed with switch in “ON” position
- Factory Wired Receptacle (Load Side)
- “Off” position is padlockable for maintenance safety
- Auxiliary Contact (late-make early-break) rated 10 Amp, 1/3 HP at 125/250 VAC.
- Adjustable mounting lugs
- Feed-through construction
- Horsepower-rated internal switch
- Killark VersaMate® VSQ Series of Switched and Interlocked receptacles provides for a receptacle solution in hazardous location areas. NEMA 4X weather-ingress ratings allow for indoor and outdoor use, and copper-free aluminum construction with electrostatically applied polyester/epoxy coating ensure the ultimate in corrosive resistance. Plug Interlock Mechanism for Dead-Front construction, ensuring that the switch cannot be turned on without a fully inserted plug (plug cannot be removed with switch in “ON”position, preventing possibly damaging arcs and sparks).
Specifications
Key Specifications
- Country of Origin
- United States
- Hub Size
- 1"
- Nema Rating
- 3, 4, 4X, 7(B, C, D), 9(F, G)
- Number Of Wires
- 4
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 30A 3W4P HZD FS INTRLK RECPT
- Harmonization Code
- 8537109170
- MSDS Flag
- No
- Factory Sealed
- Factory Sealed
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Series
- VSQ-FS Series
- BOX SIZE
- (in)
- NAICS Code
- 335931A104
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups F, G;Class III, Divisions 1 & 2
Amperage Rating30 A
Number Of Poles3
TypePin & Sleeve
Class CodeD35
Freight Class Code06316009
Image Actual Or RepresentativeA
Sub Class CodeD35D260
Hub PatternFeed-Thru
Receptacle TypeMechanically Interlocked
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936833361
