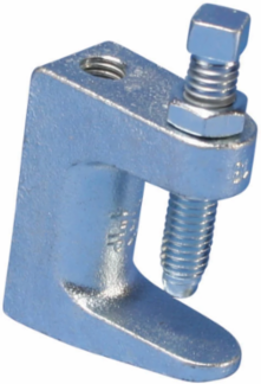

nVent Caddy 3100050EG 310 Universal Beam Clamp, Thick Flange, EG, 1/2" Rod, 1 1/4" Max Flange
- MPN: 3100050EG
- UPC: 782856339915
- PPN: CAD-3100050EG
- UNSPSC: 31162905
CAD
$14.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Reversible beam clamp for use with wide flange widths.Universal Beam Clamp, EG, 1/2" Rod
Features
- Universal beam clamp for thick beams
- Conforms with Federal Specification WW-H-171 (Type 23), Manufacturers Standardization Society (MSS) SP-58 (Type 19 and 23)
Documentation & Downloads
Specifications
Additional
- Static Load 1 (F1)
- 4,200
- Static Load Safety Factor
- 3:1
- Rod Size
- 1/2 in
- Material
- Cast Iron
- Compliance
- FM Approved, UL Listed, cUL Listed
- Sub Brand
- CADDY
Static Load 2 (F2)3,400
Torque14.9
Max Flange Width1 1/4 in
FinishElectrogalvanized
StandardsFederal Spec WW-H-171, MSS SP-58, ANSI/UL 203
