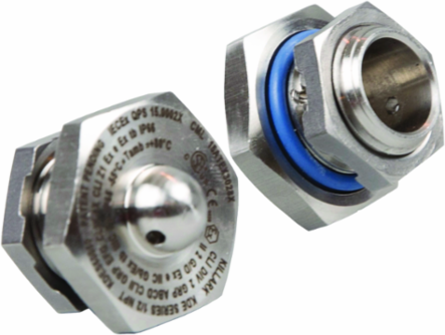

Killark KDES60M25 316 Stainless Steel Drain M25 - Ex e Class I Div. 2 IP66/4X
Killark KDES60M25 316 Stainless Steel Drain M25 - Ex e Class I Div. 2 IP66/4X
- MPN: KDES60M25
- UPC: 783936123561
- PPN: HBL-KDES60M25
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$329.88/ EA
Description
316 Stainless Steel Drain, M25 - Ex e Class I Div. 2 IP66/4X with Locknut
Features
- Silicone O-ring supplied as standard and suitable for use in a -55°C to +80°C temperature range.
- 316 stainless steel.
- Internal 316 stainless steel locknut supplied as standard.
- When tightened to the proper torque the joint makes a hose down tight seal for type 4, 4X & IP66 application.
- The KDE drain and breather are installed either the bottom top of an enclosure. When installed in the bottom they act as a gravity fed drain to expel moisture from condensation that can build up in electrical enclosures. When installed in the top of an enclosure it acts as a breather allowing air to enter and prevent a vacuum which can cause the drain not to flow properly. They are cCSAus certified for Class I Div. 2 Groups ABCD, Class I Zone 1 & 2 IIC, Class II Groups EFG, Class III, Type 4 & 4X. Also, ATEX, IEC Ex & Inmetro, Ex e IIC, Ex tb IIIC IP66. The KDE are offered in aluminum, 304 series stainless steel, 30% glass filled nylon and 316 stainless steel. Supplied standard with a high temp silicone O-Ring and 316 stainless steel castellated lock nut. Thread sizes 1/2” & ¾” NPT and Metric size M20 & M25.
Specifications
Specifications
- Country of Origin
- US
- Hub Size
- M25
- Operating Temperature Celcius Min
- -55 °C
- Application
- When installed in the bottom of a thin wall enclosure the KDE allows water from condensation to drain continuously out of the enclosure. The drain breathers are installed through clearance holes and held secured with a internal locknut. The silicone external o ring makes a hose down tight seal.
- Type
- Drain & Breather
- Class Code
- D30
- Freight Class Code
- 06316011
- Image Actual Or Representative
- R
- Sub Class Code
- D30D237
- Material
- 316 Stainless Steel
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 5.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
Hazardous Rating(s)Class I, Divisions 2, Groups A, B, C, D;Class I, Zones 1 & 2;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Operating Temperature Celcius Max80
Operating Temperature Range Celcius-55°C to 80°C
Nema Rating3, 4, 4X
ARRA CompliantContact Manufacturer
Description - InvoiceM25 Exe CID2 316SS DRAIN IP66/4X W/LN
Harmonization Code7326908688
MSDS FlagNo
CSA File Number2715851
SeriesKDE Series
BOX SIZE1.250x6.310x2.250 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936123561
Certifications
