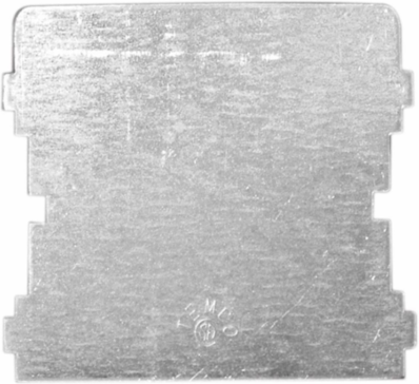

Hubbell 1204HVP 347V High Voltage Partition (100-Pack)

MPN: 1204HVP
UPC: 626463001332
PPN: HBL-1204HVP
UNSPSC: 39121308

CAD

$5.63

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

347V High Voltage Partition (100-Pack).

Features

All 347 Volt boxes have tapped holes with vertical spacing of 3.531" to accommodate 347 Volt switches, 1204 series boxes feature 2.25" spacing between gangs. Use tradeSELECT wallplates with HV suffixes, HV version of MBD and MBS series boxes feature 1.812" spacing between gangs. Use tradeSELECT wall plates with HVR suffixes

Documentation & Downloads

Specifications

Key Specifications

Actual Depth: 2.5 in

Industry Standard(s): CSA Certified

Color: Gray

Standard: CSA Certified

Type: Box

Weight: 0.15 lb.

Freight Class Code: 06168002

Image Actual Or Representative: A

Drawn or Welded: Welded

Plaster Ears: No

Wiring System: Conduit

Base Unit of Measure: EA

Case Weight: 0.000

Pallet Length: 42 in

Pallet Width: 46 in

Country of OriginCA

ApplicationHigh Voltage Partition. For use with 12042HV

Special FeaturesAll 347 Volt boxes have tapped holes with vertical spacing of 3.531" to accommodate 347 Volt switches, 1204 series boxes feature 2.25" spacing between gangs. Use tradeSELECT wallplates with HV suffixes, HV version of MBD and MBS series boxes feature 1.812" spacing between gangs. Use tradeSELECT wall plates with HVR suffixes

Sub BrandtradeSELECT

Bracket TypeNo Bracket

Class CodeT01

Harmonization Code7326909090

Sub Class CodeT01T010

GangableNo

Raised GroundNo

MaterialSteel

Carton - SCC-14 Next Lower Level Sub Pack00626463001332

Pallet Height48.21 in

Pallet Weight1248 lb.

Certifications

Certified Listed: CSA
