Hubbell 1204MSBHV Steel Device Box, 1-Gang, 2-1/2 Inch Deep, 15.7 Cu. In., CSA Certified
- MPN: 1204MSBHV
- UPC: 626463001349
- PPN: HBL-1204MSBHV
CAD
$12.44
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

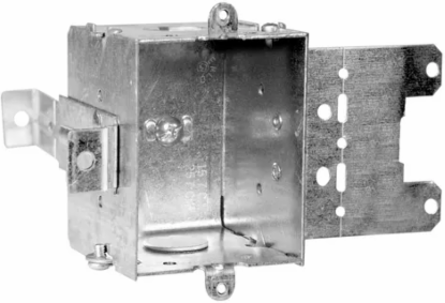

Steel Device Box, 1-Gang, 2-1/2 Inch Deep, 15.7 Cu. In., CSA Certified
Features
- This heavy-duty steel device box is purpose-built to handle high-voltage 347V electrical switches commonly deployed in commercial and industrial lighting systems.
- As the integrated MSB metal stud bracket is designed specifically for rigid mounting onto 2-3/8 inch and 3-5/8 inch steel stud sizes. It features a precise 0.4375-inch bracket setback that guarantees a flush finish with standard drywall thicknesses, keeping your installation aligned and highly professional.
- This 1-gang welded steel box features a gangable design that allows you to easily remove the sides and link multiple boxes together for customized multi-switch setups. Its generous 2-1/2 inch depth and 15.7 cubic inch internal capacity provide plenty of room for heavy-gauge high-voltage wiring and complex conduit terminations without pinching conductors.
- Fully CSA certified, ensuring strict compliance with local high-voltage commercial building regulations. It also includes a built-in raised ground screw to simplify your bonding connections, providing an immediate, reliable path to ground for maximum job site safety and reliable inspection approvals.
Documentation & Downloads
Specifications
Additional
- Type
- Box
- Depth
- 2.5 in
- Material
- Steel
- Wiring System
- Conduit
- Bracket Setback
- 0.4375 in
- Raised Ground
- Yes
- Color
- Gray
Number of Gangs1-Gang
Capacity15.7 Cu. In.
ComplianceCSA Certified
Bracket TypeMSB, for Steel Stud
Knockouts - End2 x 1/2 in
Weight0.7 lb
Construction StyleWelded
