Thomas & Betts 755LR-N0380-SG3 Deadbreak Elbow Connector
- MPN: 755LR-N0380-SG3
- UPC: 075114106078
- PPN: T-B-755LR-N0380-SG3
CAD
$1683.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

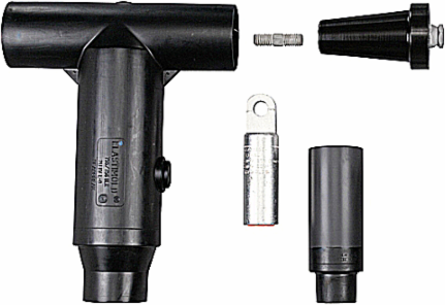

600 Amp, 35kV, 600 Series Deadbreak Elbow (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900. 200ECS-G3 Jacket Seal and Grounding Kit Included.
Specifications
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)13.2x10.5x4.38
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Can be Easily Connected or Disconnected Using Standard Hand Tools and Equipment in a De-energized State. Optional Accessories allow Visible External Separation, By-Pass, Isolation, Dead-Ending, Grounding, and Testing as well as Adding Taps, Surge Arrestors, and Fault Current Indicators .
- Standard
- ANSI/IEEE Standard 386
- Conductor Range
- Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.
- Color
- Black
- Amperage Rating
- 600 Amps
- Temperature Rating
- -40 degrees to +65 degrees Celsius
IGCC4586 Electrical connector assembly
TypeDeadbreak Elbow Connector
ApplicationDesigned to provide Fully Shielded, Dead-Front Submersible Cable Connections to High-Voltage Apparatus.
SizeCable Insulation Diameter 1.515 inch to 1.780 inch.
MaterialHousing - EPDM Rubber
Voltage Rating35kV
InsulationYes, EPDM Rubber
Environmental ConditionsFully Submersible
