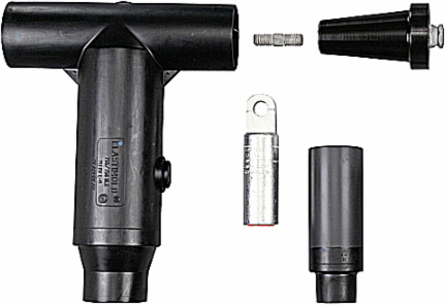

Thomas & Betts 755LR-K0250-SG3 Deadbreak Elbow Connector
- MPN: 755LR-K0250-SG3
- UPC: 075114312134
- PPN: T-B-755LR-K0250-SG3
CAD
$1591.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
35kv, 600 Amp, Loadbreak, Elbow, with Sealing Kit, Cable Insulation Diameter 1.090-1.310 inches, Aluminum Lug, Conductor Size 2/0 Compressed/Stranded or 3/0 Compact/Solid.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Can be Easily Connected or Disconnected Using Standard Hand Tools and Equipment in a De-energized State. Optional Accessories allow Visible External Separation, By-Pass, Isolation, Dead-Ending, Grounding, and Testing as well as Adding Taps, Surge Arrestors, and Fault Current Indicators .
- Standard
- ANSI/IEEE Standard 386
- Conductor Range
- Conductor Size 2/0 Compressed/Stranded or 3/0 Compact/Solid.
- Color
- Black
- Amperage Rating
- 600 Amps
- Temperature Rating
- -20 Degrees C to +65 Degrees C
IGCC4586 Electrical connector assembly
TypeDeadbreak Elbow Connector
ApplicationDesigned to provide Fully Shielded, Dead-Front Submersible Cable Connections to High-Voltage Apparatus.
SizeCable Insulation Diameter 1.090-1.310 inches
MaterialHousing - EPDM Rubber
Voltage Rating35kV
InsulationYes, EPDM Rubber
Environmental ConditionsFully Submersible
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)1x1x1
