Thomas & Betts 375LR-K-2240 35KV 200A ELBOW NO-SEALING KIT
- MPN: 375LR-K-2240
- UPC: 075114378505
- PPN: T-B-375LR-K-2240
- UNSPSC: 39121421
CAD
$835.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
35kV 200 Amp, Loadbreak Elbow Connector without Test Point, Cable Insulation Diameter 1.090 inch to 1.310 inch. Copper Compression Lug. Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49.
Specifications
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Additional Information
- Application
- 35 kv, 200 Amp
- Color
- Black
- Current Rating
- 200 A
- Environmental Conditions
- Fully Submersible
- Insulation Material
- Yes EPDM Rubber
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Size
- Cable Insulation Diameter 1.090 inch to 1.310 inch.
- Standards
- ANSI/IEEE Standard 386
- Voltage Rating
- 35 kV
Brand / LabelElastimold
Connection TypeCompression
Effective Date20180815

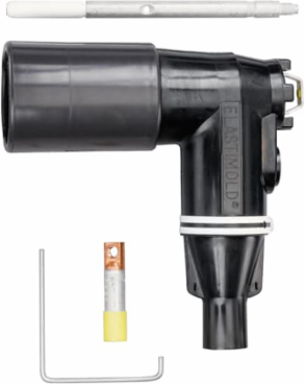

Includes1 Elbow Connector Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube Lubricant, 1 Crimp Chart, 1 Installation Instruction Sheet
MaterialHousing - EPDM Rubbe
Product TypeLoadbreak Elbow Connector
Special Functions35kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection.
Temperature Range-40 to +65 °C
Classifications
- IDEA Granular Category Code (IGCC)
- 4586 >> Electrical connector assembly
