Thomas & Betts 756LR-N0410 35KV 600A ELBOW NO SEALING KIT

MPN: 756LR-N0410
UPC: 075114330480
PPN: T-B-756LR-N0410
UNSPSC: 39121421

$1546.43

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

35kV, 600 Amps, Deadbreak Elbow with Test Point. Cable Insulation Diameter Range 1.515 to 1.780 inch, Aluminum Lug, Conductor Size 1000 Stranded/Compressed. No Sealing Kit.

Specifications

Additional Information

Application	35 kv, 600 Amp
Color	Black
Current Rating	600 A
Environmental Conditions	Fully Submersible
Insulation Material	Yes, EPDM Rubber
Product Name	ELECTRICAL CONNECTOR,>1000V
Size	Width 12.28 inches, 13.93 inches from Bottom Edge to Center of Installation O-Ring.
Standards	ANSI/IEEE Standard 386
Voltage Rating	35 kV

Brand / Label	Elastimold
Connection Type	Compression
Effective Date	20170207

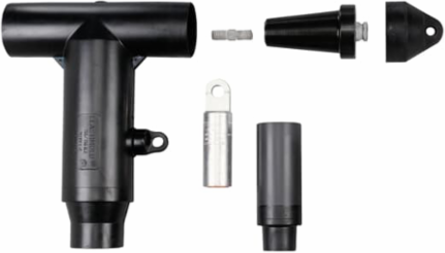

Includes	1 Elbow Connector Housing, 1 Compression Lug, 1 Stud, 1 Insulated Plug with Cap, 1 Cable Adapter, 1 Tube Lubricant, 1 Crimp Chart, 1 V.D. Cap-Peroxide, Installation Instruction Sheets
Material	Housing - EPDM Rubber
Product Type	Deadbreak Elbow Connector with Test Point
Special Functions	35kV, 600 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state.
Temperature Range	-40 to +65 °C
