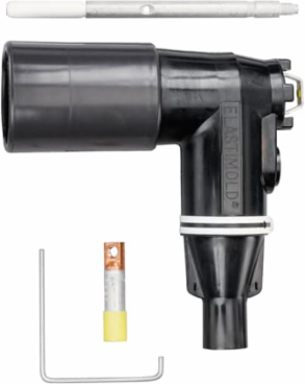

Thomas & Betts 375LR-K-5240-SG3 35KV 200A LB ELBOW W/O TP K5240 SG3
- MPN: 375LR-K-5240-SG3
- UPC: 075114311205
- PPN: T-B-375LR-K-5240-SG3
- UNSPSC: 39121421
CAD
$923.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
200 Amp, 35kV, Loadbreak Elbow Connector without Test Point, with Sealing Kit. Cable Insulation Diameter 1.090 inch to 1.310 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49. 200ECS-G3 Jacket Seal and Grounding Kit Included.
Specifications
Additional Information
| Application | 35kV, 200 Amps |
|---|---|
| Color | Black |
| Effective Date | 20160714 |
| Includes | 1 Elbow Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube Lubricant, 1 Crimp Chart, 1 Installation Instruction Sheet |
| Material | Housing - EPDM Rubber |
| Product Type | Loadbreak Elbow Connector |
| Special Functions | SG3 Sealing Kit - Cold Shrinkable Seal with Copper Braid and Contant Force Spring. |
| Temperature Range | -40 to +65 °C |
| Brand / Label | Elastimold |
|---|---|
| Current Rating | 200 A |
| Environmental Conditions | Fully Submersible |
| Insulation Material | Yes, EPDM Rubber |
| Product Name | ELECTRICAL CONNECTOR,>1000V |
| Size | Cable Insulation Diameter 1.090 inch to 1.310 inch. |
| Standards | ANSI/IEEE Standard 386 |
| Voltage Rating | 35 kV |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
