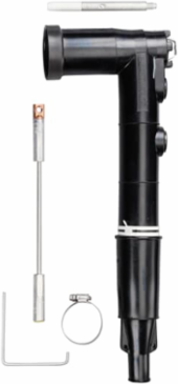

Thomas & Betts 167RLR-K5240 15KV 200A LB REPLACE ELBOW K5240

MPN: 167RLR-K5240
UPC: 783786833689
PPN: T-B-167RLR-K5240
UNSPSC: 39121421

$830.73

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

200 Amp, 15kV, Loadbreak Replacement Elbow Connector without Test Point, Cable Insulation Diameter 1.090 inch to 1.310 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49. Repair Elbow has extended length contact and elbow housing resulting in a net gain of 8-7/8 inches in length. Includes 00400X long Bi-Metal Contact.

Specifications

Additional Information

Application	Designed for connecting to and operating 15kV Class, 95kV BIL apparatus.
Color	Black
Effective Date	20090701
Includes	Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Tube of Lubricant, Installation Instructions, Crimp Chart and Hose Clamp.
Material	Housing - EPDM Rubber
Product Type	Loadbreak Replacement Elbow Connector
Special Functions	Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured insulation, insert and jacket. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Extended length housing and compression lug plus 10-1/2 inch (266.7mm).
Temperature Range	-40 to +65 °C

Brand / Label	Elastimold
Current Rating	200 A
Environmental Conditions	Fully Submersible
Insulation Material	Yes, EPDM Rubber
Product Name	ELECTRICAL CONNECTOR,>1000V
Size	Cable Insulation Diameter 1.090 inch to 1.310 inch
Standards	ANSI/IEEE Standard 386
Voltage Rating	15 kV
