Thomas & Betts 376LR-H-2240 35KV 200A LB ELBOW W/TP H2240
- MPN: 376LR-H-2240
- UPC: 783786644865
- PPN: T-B-376LR-H-2240
- UNSPSC: 39121421
CAD
$902.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
200 Amp, 35kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.850 inch to 1.050 inch. Copper Compression Lug, Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49.
Specifications
Additional Information
- Application
- 35 kv, 200 Amp
- Color
- Black
- Current Rating
- 200 A
- Environmental Conditions
- Fully Submersible
- Insulation Material
- Yes, EPDM Rubber
- Product Name
- PRIMARY CABLE ACC. 200 SEP CON
- Size
- Cable Insulation Diameter 0.850 inch to 1.050 inch
- Standards
- ANSI/IEEE Standard 386
- Voltage Rating
- 35 kV
Brand / LabelElastimold
Connection TypePush-In
Effective Date19980115

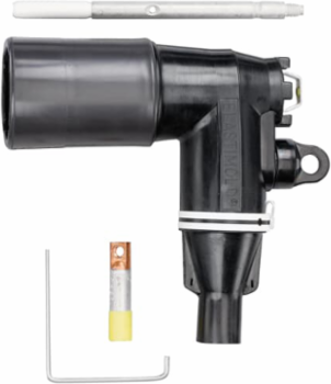

Includes1 Elbow Connector Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube Lubricant, 1 Crimp Chart, 1 V.D. Cap-Peroxide, 1 Installation Instruction Sheet
MaterialHousing - EPDM Rubber
Product TypeLoadbreak Elbow Connector with Test Point
Special Functions35kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Non-Corrosive Capacitive Voltage Test Point.
Temperature Range-40 to +65 °C
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
