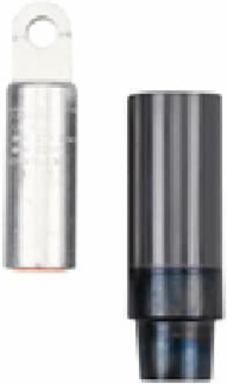

Thomas & Betts 755CK-L0260-S 35KV 600A CABLE ADPT/LUG L0260-S
- MPN: 755CK-L0260-S
- UPC: 783786385324
- PPN: T-B-755CK-L0260-S
- UNSPSC: 26121630
CAD
$388.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 35KV, Cam-Op, Size Sensitive Kit, (Cable Adapter and Lug), Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 3/0 /Compacted Solid 4/0 /mmSquared Compact 95. 200ECS Cold-Shrinkable Jacket Seal Included.
Specifications
Additional Information
| Application | Deadbreak, 600 Amp, 35kV |
|---|---|
| Connection Type | Compression |
| Material | EPDM Cable Adapter |
| Product Type | Cable Adapter and Lug |
| Special Functions | Cold-Shrinkable Jacket Seal |
| Temperature Range | -40 to +65 °C |
| Brand / Label | Elastimold |
|---|---|
| Effective Date | 20120301 |
| Product Name | ELECTRICAL CONNECTOR,>1000V |
| Size | Conductor Size AWG Compressed/Stranded 3/0 or Compacted/Solid 4/0 |
| Standards | ANSI/IEEE 386 |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 1779 >> Cable accessories |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
