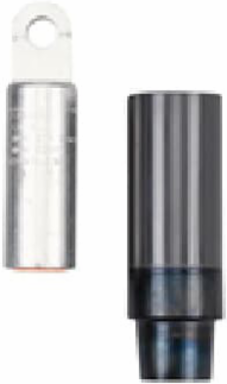

Thomas & Betts 755CK-M0320 35KV 600A CABLE ADPT/LUG M0320
- MPN: 755CK-M0320
- UPC: 783786505913
- PPN: T-B-755CK-M0320
- UNSPSC: 26121630
CAD
$283.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 35KV, Cam-Op, Size Sensitive Kit, 600 Series, 35kV, Elbow and Vault Stretcher Size Senstive Kit, Cable Adapter and Lug. Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 450 /Compacted Solid 500/550.
Specifications
Additional Information
| Application | Deadbreak, 600 Amp, 35kV |
|---|---|
| Connection Type | Compression |
| Material | EPDM Cable Adapter |
| Product Type | Cable Adapter and Lug |
| Standards | ANSI/IEEE 386 |
| Brand / Label | Elastimold |
|---|---|
| Effective Date | 20061103 |
| Product Name | ELECTRICAL CONNECTOR,>1000V |
| Size | Conductor kcmil Compressed/Stranded 450 or Compact/Solid 500/550. |
| Temperature Range | -40 to +65 °C |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 1779 >> Cable accessories |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
