Thomas & Betts 755L2-M0300-S 35KV 600A DB 2-WAY L-KIT M0300-SEAL
- MPN: 755L2-M0300-S
- UPC: 783786418442
- PPN: T-B-755L2-M0300-S
- UNSPSC: 39121421
CAD
$3328.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, DeadBreak Elbow Connector, 2-Way L Kit, 35KV, Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 350 /Compacted Solid 400 /mmSquared Compact 185. Cold-Shrinkable Jacket Seal Included.
Specifications
Additional Information
- Application
- Used to connect two cable ends and using the two insulating plugs as test points allows for capacitive voltage testing
- Color
- Black
- Current Rating
- 600 A
- Environmental Conditions
- Fully Submersible
- Insulation Material
- Yes, EPDM Rubber
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Size
- 25.38 inch Wide, 13.93 inch from Bottom of T to Center of Plug.
- Standards
- ANSI/IEEE Standard 386
- Voltage Rating
- 35 kV
Brand / LabelElastimold
Connection TypeCompression
Effective Date20040107

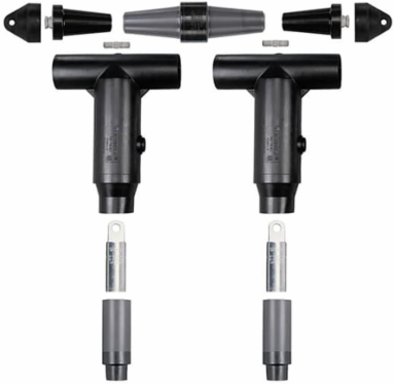

Includes(2) Elbows, (2) Cable Size Adapters, (2) Compression Lugs, (6) Tubes of Lubricant, (2) Basic Insulating Plugs with Caps, (2) Studs, (1) Connecting Plug, Installation Instructions, Crimp Chart.
MaterialHousing - EPDM Rubber
Product TypeDeadbreak 2-Way L Kit
Special FunctionsCold-Shrinkable Jacket Seal
Temperature Range-40 to +65 °C
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
