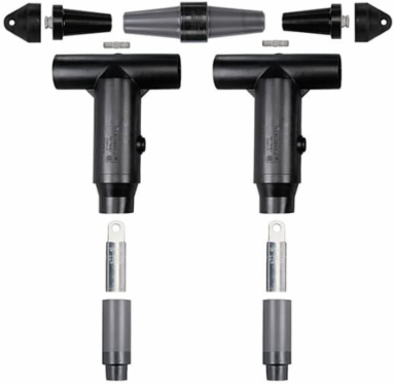

Thomas & Betts 755L2-J0230 L-KIT,2 WAY,600A DB, 35KV

MPN: 755L2-J0230
UPC: 783786504909
PPN: T-B-755L2-J0230
UNSPSC: 39121421

$3285.82

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

600 Amp, 35kV, 600 Series Deadbreak 2-Way L-Kit. Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded #1/ Compacted Solid 1/0 /mmSquared Compact 50.

Specifications

Additional Information

Application	Used to connect two cable ends and using the two insulating plugs as test points allows for capacitive voltage testing
Color	Black
Current Rating	600 A
Environmental Conditions	Fully Submersible
Insulation Material	Yes, EPDM Rubber
Product Name	ELECTRICAL CONNECTOR,>1000V
Size	25.38 inch Wide, 13.93 inch from Bottom of T to Center of Plug.
Standards	ANSI/IEEE Standard 386
Voltage Rating	35 kV

Brand / Label	Elastimold
Connection Type	Compression
Effective Date	20061018
Includes	(2) Elbows, (2) Cable Size Adapters, (2) Compression Lugs, (6) Tubes of Lubricant, (2) Basic Insulating Plugs with Caps, (2) Studs, (1) Connecting Plug, Installation Instructions, Crimp Chart.
Material	Housing - EPDM Rubber
Product Type	Deadbreak 2-Way L Kit
Special Functions	No Seal
Temperature Range	-40 to +65 °C
