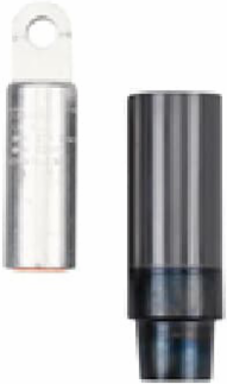

Thomas & Betts 755CK-J0260 35KV 600A DB CABLE SIZING PACKAGE
- MPN: 755CK-J0260
- UPC: 075114371407
- PPN: T-B-755CK-J0260
- UNSPSC: 39121421
CAD
$297.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 35KV, Cam-Op, Size Sensitive Kit, Cable Adapter and Lug. Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 3/0 or Compacted Solid 4/0.
Specifications
Additional Information
| Brand / Label | Elastimold |
|---|---|
| Connection Type | Compression |
| Effective Date | 20180504 |
| Includes | Elbow Connector Housing, Stick-Op Loadbreak Reducing Tap Plug, Insulated Cap, Cable Size Adapter, Compression Lug, Silicone Lubricant, Instruction Sheet, Crimp Chart |
| Material | Housing - EPDM Rubber |
| Product Type | Stick-Op Connector Kit |
| Standards | ANSI/IEEE Standard 386 |
| Voltage Rating | 35 kV |
| Color | Black |
|---|---|
| Current Rating | 600 A |
| Environmental Conditions | All Weatheronditions °C |
| Insulation Material | Yes, EPDM Rubber |
| Product Name | ELECTRICAL CONNECTOR,>1000V |
| Size | T-Body Width 10.16 inch, T-Body Length Bottom to Centerline 13.93 inch |
| Temperature Range | -40 to +65 °C |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
