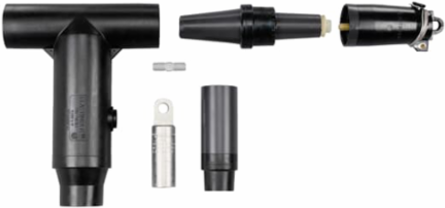

Thomas & Betts 755ETP-J0240-DRG 35KV 600A ETP ELBOW KIT J0240-DRG
- MPN: 755ETP-J0240-DRG
- UPC: 783786639250
- PPN: T-B-755ETP-J0240-DRG
- UNSPSC: 39121421
CAD
$1757.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 35kV, Deadbreak, Test and Ground Connector kit, includes Insulated cap, reducing tap plug, elbow housing, cable adapter and 0370 style compression lug. 600ATM assembly tool required, 50-60 foot/pounds torque wrench required but not included. Aluminum Compression Lug. Cable Insulation Diameter 0.980 inch to 1.180 inch. Conductor Size AWG or kcmil, Compressed Stranded 1/0 /Compacted Solid 2/0.
Specifications
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Additional Information
| Application | 600 Amps, 35kV |
|---|---|
| Color | Black |
| Current Rating | 600 A |
| Insulation Material | EPDM Rubber |
| Product Name | ELECTRICAL CONNECTOR,>1000V" |
| Size | Cable Insulation Diameter 0.980-1.180 inches. |
| Standards | ANSI/IEEE Standard 386 |
| Voltage Rating | 35 kV |
| Brand / Label | Elastimold |
|---|---|
| Connection Type | Compression |
| Effective Date | 19980108 |
| Material | Housing - EPDM Rubber |
| Product Type | Window-Op Connector |
| Special Functions | Includes Insulated Cap |
| Temperature Range | -40 to +65 °C |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
