Thomas & Betts 755ETP-M0260-DRG 35KV 600A ETP ELBOW KIT M0260-DRG
- MPN: 755ETP-M0260-DRG
- UPC: 783786462230
- PPN: T-B-755ETP-M0260-DRG
- UNSPSC: 39121421
CAD
$1723.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

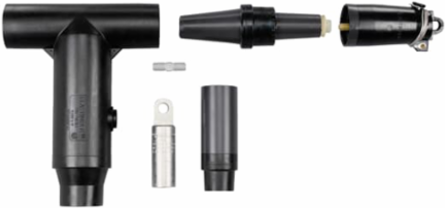

600 Amp, 35kV, Deadbreak, Test and Ground Connector kit, includes Insulated cap, reducing tap plug, elbow housing, cable adapter and 0370 style compression lug. 600ATM assembly tool required, 50-60 foot/pounds torrque wrench required but not included. Aluminum Compression Lug. Cable Insulation Diameter 1.370 inch to 1.630 inch. Conductor Size AWG or kcmil, Compressed Stranded 3/0 /Compacted Solid 4/0 /mmSquared Compact 95.
Specifications
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Additional Information
- Application
- 600 Amps, 35kV
- Color
- Black
- Current Rating
- 600 A
- Insulation Material
- EPDM Rubber
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Size
- Cable Insulation Diameter 1.370 inch to 1.630 inch.
- Standards
- ANSI/IEEE Standard 386
- Voltage Rating
- 35 kV
Brand / LabelElastimold
Connection TypeCompression
Effective Date20050518
MaterialHousing - EPDM Rubber
Product TypeWindow-Op Connector
Special FunctionsIncludes Insulated Cap
Temperature Range-40 to +65 °C
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
