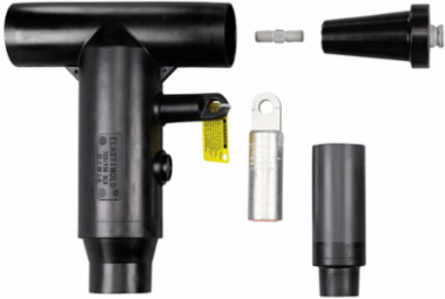

Thomas & Betts 755DLR-J0240 35KV DB ELBOW HOUSING

MPN: 755DLR-J0240
UPC: 075114213219
PPN: T-B-755DLR-J0240
UNSPSC: 39121421

$1479.00

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

600 Amp, 35KV, Direct Test Elbow, with Insulated Plug, Cap, Stud, Lug and Cable Adapter, Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 1/0 or Compacted/Solid 2/0.

Specifications

Additional Information

Brand / Label	Elastimold
Connection Type	Compression
Effective Date	20150107
Includes	Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Cable Adapter, Lubricant, Installation Instructions, Crimp Chart
Material	Aluminum Lug, EPDM Rubber Body
Product Type	Deadbreak Direct Test Elbow Connector
Special Functions	Fully Shielded, Fully Submersible. Comes with Insulated Plug, Cap, Stud, Lug and Cable Adapter
Temperature Range	-40 to +65 °C

Color	Black
Current Rating	600 A
Environmental Conditions	All Weatheronditions °C
Insulation Material	Yes, EPDM Rubber
Product Name	ELECTRICAL CONNECTOR,>1000V
Size	T-Body 12.23 inch wide. 14.30 inch from bottom of T-Body to center of Bushing Interface entrance.
Standards	ANSI/IEEE Standard 386
Voltage Rating	35 kV
