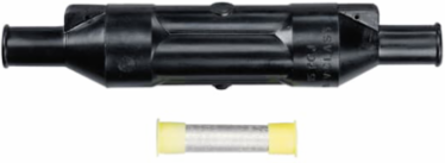

Thomas & Betts 35PCJ1N1360S 35KV POWER CABLE SPLICE
- MPN: 35PCJ1N1360S
- UPC: 075114170741
- PPN: T-B-35PCJ1N1360S
- UNSPSC: 39121452
CAD
$952.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
35kV Power Cable Joint Style 1, Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 650 /Compacted Solid 750 /mmSquared Compact 400. Cold Shrinkable Jacket Seal included.
Specifications
Additional Information
- Application
- For Direct Burial, Vault, Submersible and Other Severe Service Applications.
- Color
- Black
- Effective Date
- 20140414
- Material
- EPDM Rubber
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Size
- 15-3/4 inch long
- Standards
- IEEE Standard 404
Brand / LabelElastimold
Connection TypeCompression
Insulation MaterialYes
Number of Conductors2
Product TypePower Cable Joint
Special FunctionsPower Cable Joints utilize permanently crimped connectors. PCJ housings are fully insulated, shielded and sealed for direct-burial, vault, submersible and other servere service applications. Units have been designed and tested per IEEE Standard 404 to ensure system matched performance and ratings equal to the cable to which the splice will be installed. Power Cable Joints are available in two styles. Style 1 uses a single-piece housing that is sized to accommodate a specific range of cable - ideally suited to straight splicing of the same or similar cable. Style 2 designs incorporate a universal housing with separate cable adapters to allow transition splices of different types and sizes of cable.
Voltage Rating35 kV
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4677 >> Cable joint
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
