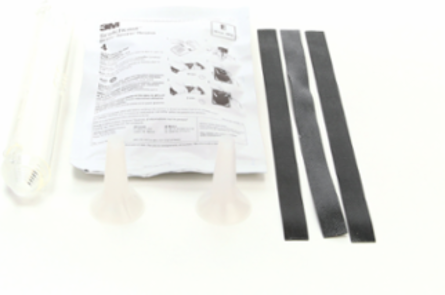

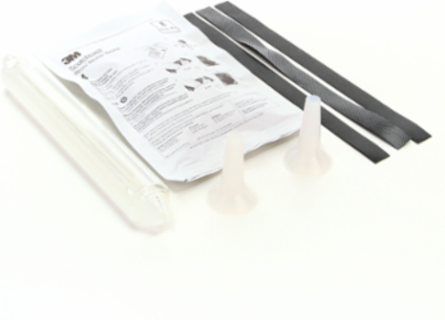

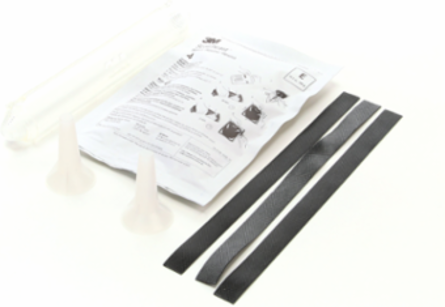

3M 82-A2N 3M™ Scotchcast™ Inline Resin Power Cable Splice kit 82-A2N, 2-3/0 AWG, 1per box, 10/Case

3M™ Scotchcast™ Inline Resin Power Cable Splice kit 82-A2N, 2-3/0 AWG, 1per box, 10/Case
3M™ Scotchcast™ Inline Resin Power Cable Splice kit 82-A2N, 2-3/0 AWG, 1per box, 10/Case
3M™ Scotchcast™ Inline Resin Power Cable Splice kit 82-A2N, 2-3/0 AWG, 1per box, 10/Case
3M™ Scotchcast™ Inline Resin Power Cable Splice kit 82-A2N, 2-3/0 AWG, 1per box, 10/Case
  • MPN: 82-A2N
  • UPC: 051128613429
  • PPN: MMM-82-A2N

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$210.58/ EA

Description

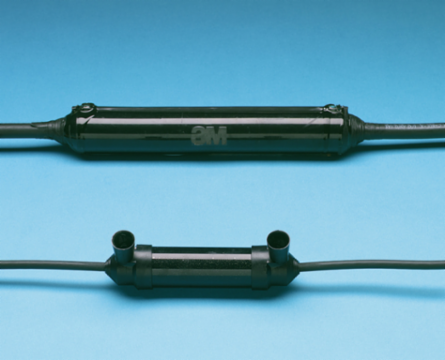

3M™ 82-AN Series Inline Resin Power Cable Splice Kit is designed to insulate and seal 5kV rated unshielded, single conductor cables and 1 kV rated multiple conductor cables. It is suitable for use in weather exposed or direct burial locations.

Features

  • Insulates and seals unshielded, single conductor cables and multiple conductor cables
  • Splices non-shielded wet or dry cables
  • Designed for weather-exposed or direct burial locations
  • Rated for 5 kV and 1 kV cables
  • UL Listed and RoHS 2011/65/EU Compliant

Specifications

Specifications

Manufacturer Catalog Number
7100123110
Color Family (incorporate Product Color)
Black
Dielectric Strength
500 Millivolt
Insulation Outside Diameter Range
0.625 - 1.00 Inch
Manufacturing Origin
USA
Maximum Cable Outside Diameter
1.00 in
Maximum Conductor Size
3/0 AWG
Resin Type
Liquid
Voltage
5 kV
Cable ShieldingMultiple Conductor Portable Cable
Conductor Size Range2-3/0 AWG
Insulation O.D. Range0.625 - 1.00 Inch
Insulation Outside Diameter Range (Metric)16 - 25 mm
MaterialEpoxy
Maximum Cable Outside Diameter (Metric)25.4 mm
Minimum Conductor Size2 AWG
Splice TypeInline

Packaging

Package Length
11.87500 in
Package Weight
1.3650 LBS
Package Height2.31200 in
