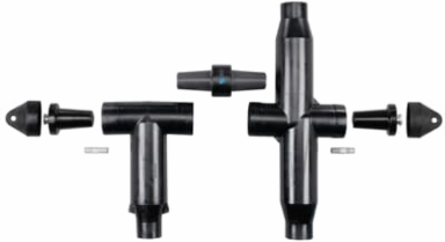

Thomas & Betts 755VSL3-N0320-SG3 35KV VSL3 W-SEALING KIT
- MPN: 755VSL3-N0320-SG3
- UPC: 075114414852
- PPN: T-B-755VSL3-N0320-SG3
- UNSPSC: 39121421
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 35kV, 600 Series Deadbreak 3-Way VS-Kit. Cable Insulation Diameter 1.550 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size kcmil, Compressed Stranded 450 /Compacted Solid 500/550. Cold-Shrinkable Seal with Copper Braid and Constant Force Spring
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | ELASTIMOLD |
| Connection | Compression |
| Material | Housing EPDM Rubber |
| Color | Black |
| Insulation | EPDM Rubber |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4586 |
| Application | 35 kV, 600 Amps |
| Conductor Range | 450 STR kcmil to 500/500 CPT kcmil |
| Voltage Rating | 35 kV |
| Amperage Rating | 600 A |
| Temperature Rating | -40 to +65 C |
