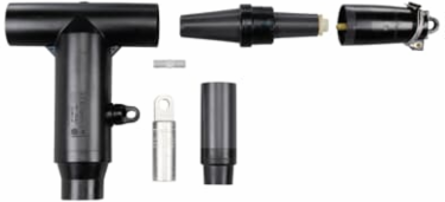

Thomas & Betts 756ETP-K0240-DRG-S 35KV WINDOW-OP ELBOW KIT W-SEALING
- MPN: 756ETP-K0240-DRG-S
- UPC: 075114216616
- PPN: T-B-756ETP-K0240-DRG-S
- UNSPSC: 39121421
CAD
$1796.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
35kV, 600 Amp, Window Op With Test Point, Cable Insulation 1.090-1.310 inches, Aluminum Compression Lug, Conductor Size 1/0 Stranded/Compressed or 2/0 Compact/Solid. With Sealing Kit.
Features
- Includes Insulated Cap and Sealing Kit
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | ELASTIMOLD |
| Connection | Compression |
| Size | Cable Insulation Diameter 1.090-1.310 inches |
| Material | Housing - EPDM Rubber |
| Color | Black |
| Insulation | EPDM Rubber |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4586 |
| Application | 600 Amps, 35kV |
| Standard | ANSI/IEEE Standard 386 |
| Conductor Range | 1/0 STR/COMPR AWG , 2/0 SOL/COMPT AWG |
| Voltage Rating | 35 kV |
| Amperage Rating | 600 A |
| Temperature Rating | -40 to +65 C |
