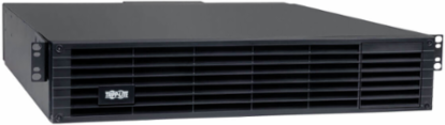

Tripp Lite BP36V27-2US 36V External Battery Pack for Select Tripp Lite UPS Systems, 2U Rack/Tower
Tripp Lite BP36V27-2US 36V External Battery Pack for Select Tripp Lite UPS Systems, 2U Rack/Tower
- MPN: BP36V27-2US
- UPC: 037332230966
- PPN: TRP-BP36V27-2US
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1933.10/ EA
Description
36V External Battery Pack for Select Tripp Lite UPS Systems, 2U Rack/Tower
Features
- Connects to expandable 36V DC Tripp Lite UPS systems for extended runtime
- Daisy-chain connector supports additional battery packs for even longer runtime
- Optional-use detection jacks auto-configure select UPS systems for quicker setup
- Mounts in 2U of space in 19 in. rack using included 4-post installation hardware
- Supports 2-post rack, 2-point rail, wall or tower installation with optional accessories
- 2-year limited warranty
- External Battery Pack Gives Your Compatible Tripp Lite UPS System Extended Runtime
- Versatile Installation Options Allow You to Place the Battery Where Most Needed
- 2-Year Warranty
Specifications
Battery
- DC System Voltage (VDC)
- 36
- Typical Battery Lifespan
- 3-6 years typical (North America)

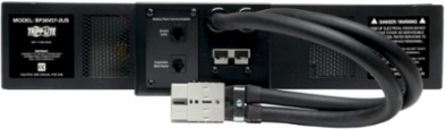

UPS ConnectionAttached 18in. / 457mm 6AWG cable with 50A gray 2-point DC connector
Physical
- External Battery Pack Form Factor
- Rack/Tower
- Installation Form Factors Supported with Included Accessories
- 4 post 19 inch rackmount
- Material of Construction
- Steel
- Optional Mounting Accessory Notes
- Optional 2-9USTAND enables upright tower UPS placement; 2POSTRMKITWM enables wall-mount and 2-post rackmount installation; 4POSTRAILKITWM enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm); UPSHDEARKIT enables installation in 2 or 4-post racks using front vertical rails only, without rear support
- Shipping Weight (lbs.)
- 105.00
- Unit Weight (lbs.)
- 68.91

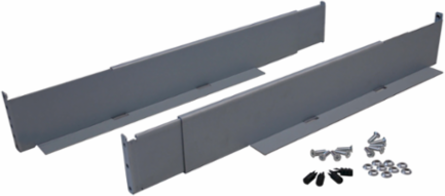

Included Mounting Accessory DescriptionIncluded 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
Installation Form Factors Supported with Optional Accessories2 post rackmount (2POSTRMKITWM); 2-4 post front rail rackmount (UPSHDEARKIT); 4 post rackmount short-depth (4POSTRAILKITWM); Tower (2-9USTAND); Wallmount (2POSTRMKITWM)
Minimum Required Rack Depth (inches)29.1
Shipping Dimensions (hwd / in.)9.50 x 26.50 x 28.50
Unit Dimensions (hwd / in.)3.43 x 17.32 x 22.6
Input
- Input Phase
- Single-Phase
Overview
- UPC Code
- 037332230966
Warranty
- Product Warranty Period (U.S. & Canada)
- 2-year limited warranty
