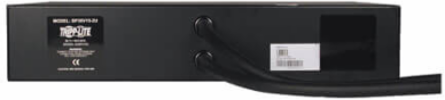

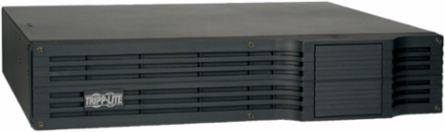

Tripp Lite BP36V15-2U External 36V 2U Rack/Tower Battery Pack for select Tripp Lite UPS Systems (BP36V15-2U)
Tripp Lite BP36V15-2U External 36V 2U Rack/Tower Battery Pack for select Tripp Lite UPS Systems (BP36V15-2U)
- MPN: BP36V15-2U
- UPC: 037332119919
- PPN: TRP-BP36V15-2U
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1535.30/ EA
Description
External 36V 2U Rack/Tower Battery Pack for select Tripp Lite UPS Systems (BP36V15-2U)
Features
- Extends the runtime of compatible 36V Tripp Lite UPS Systems
- Supports 2U rackmount installation; 4 post installation accessories included
- Options for 2 post rackmount, tower and wallmount installation available
- 2-year limited warranty
Specifications
Battery
- DC System Voltage (VDC)
- 36
- Typical Battery Lifespan
- 4-6 years typical
UPS ConnectionGrey 2-point connector
Physical
- External Battery Pack Form Factor
- Rack/Tower
- Installation Form Factors Supported with Included Accessories
- 4 post 19 inch rackmount
- Material of Construction
- Steel
- Optional Mounting Accessory Notes
- Optional 2-9USTAND enables upright tower UPS placement; 2POSTRMKITWM enables wall-mount and 2-post rackmount installation; 4POSTRAILKITWM enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm)
- Shipping Weight (lbs.)
- 56.70
- Unit Weight (lbs.)
- 45
Included Mounting Accessory DescriptionIncluded 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
Installation Form Factors Supported with Optional Accessories2 post rackmount (2POSTRMKITWM); 4 post rackmount short-depth (4POSTRAILKITWM); Tower (2-9USTAND); Wallmount (2POSTRMKITWM)
Minimum Required Rack Depth (inches)19.75
Shipping Dimensions (hwd / in.)8.90 x 20.20 x 23.40
Unit Dimensions (hwd / in.)3.5 x 17.5 x 13.25
Input
- Input Phase
- Single-Phase
Overview
- UPC Code
- 037332119919
Warranty
- Product Warranty Period (U.S. & Canada)
- 2-year limited warranty
Downloads
