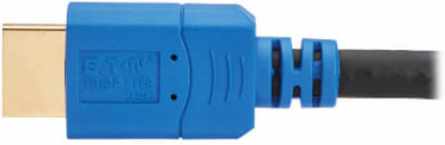

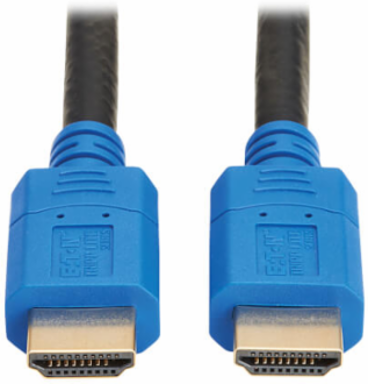

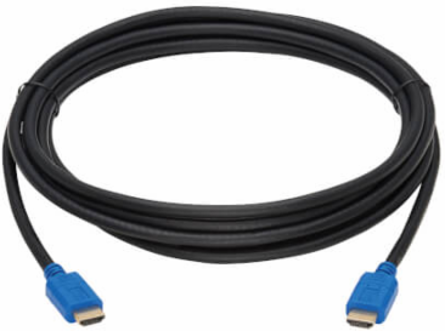

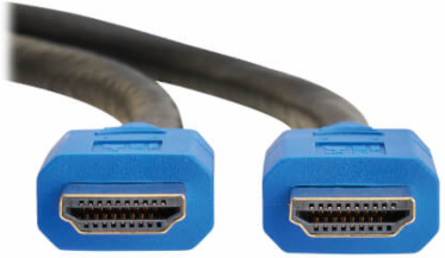

Tripp Lite P5680038K6 8K HDMI Cable, 8K 60 Hz / 4K 120 Hz, Dynamic HDR, 4:4:4, HDCP 2.2, M/M, Black, 3 ft
- MPN: P5680038K6
- UPC: 037332254795
- PPN: TRP-P568-003-8K6
CAD
$31.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
8K HDMI Cable (M/M) - 8K 60 Hz / 4K 120 Hz, Dynamic HDR, 4:4:4, HDCP 2.2, Black, 3 ft
Documentation & Downloads
Specifications
Dimensions
- Cable Length
- 3 ft
- Wire Gauge
- 28
- Unit Dimensions
- 9.000 x 7.000 x 0.500 in
- Video Output
- HDMI (Male)
- Side B - Connector 1
- HDMI (Male)
Cable Outer Diameter7.3 mm
Minimum Bend Radius36.5mm
Video InputHDMI (Male)
Side A - Connector 1HDMI (Male)
Connector StyleStraight
Performance
- Max Supported Video Resolution
- 7680 x 4320 (8K) @ 60Hz
- Max Supported Color Depth
- 48-bit Deep Color
- Chroma Sub Sampling
- 4:4:4
- Bandwidth
- 48 Gbps
- Cable Voltage Rating
- 30V
- Integrated/Removable Cable
- No
- Storage Temperature Range
- 5° to 140°F (-15° to 60°C)
- Storage Humidity Range
- 0% to 90% RH, Non-Condensing
Supported Resolutions1280x720 (720p); 1920x1080 (1080p); 3840x2160 (4K); 7680x4320 (8K)
HDR SupportYes
Signal TransmissionBidirectional
Audio SpecificationeARC
HDCP Specification1.4; 2.2
Operating Temperature Range14° to 122°F (-10° to 50°C)
Operating Humidity Range0% to 90% RH, Non-Condensing
Material
- Product Type
- Passive Cable
- Color
- Black
- Connector Color
- Blue
Connector PlatingGold
Material of ConstructionPVC
Cable Jacket RatingVW-1
Reference
- Product Warranty Period
- Lifetime limited warranty
