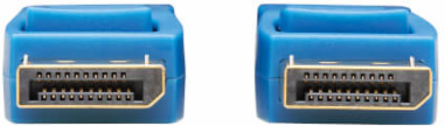

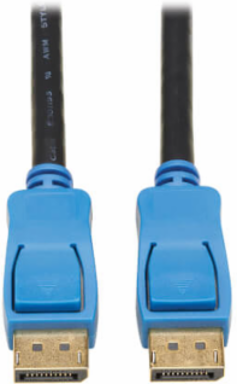

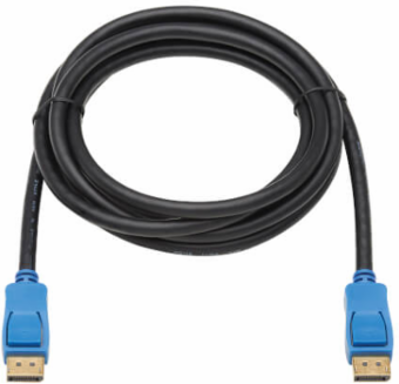

Tripp Lite P5800038K6 DisplayPort Cable with Latching Connectors (M/M), 8K 60 Hz, HDR, HBR3, 4:4:4, HDCP 2.2, Black, 3 ft. (0.9 m)
- MPN: P5800038K6
- UPC: 037332254108
- PPN: TRP-P580-003-8K6
CAD
$32.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
DisplayPort Cable with Latching Connectors (M/M), 8K 60 Hz, HDR, HBR3, 4:4:4, HDCP 2.2, Black, 3 ft. (0.9 m)
Documentation & Downloads
Specifications
Dimensions
- Cable Length
- 3 ft
- Wire Gauge
- 30
- Side B - Connector 1
- DisplayPort (Male)
- Integrated/Removable Cable
- No
Cable Outer Diameter6.8 mm
Side A - Connector 1DisplayPort (Male)
Connector StyleStraight
Performance
- Max Supported Video Resolution
- 7680 x 4320 (8K) @ 60Hz
- HDR Support
- Yes
- Signal Transmission
- Bidirectional
- HDCP Specification
- 2.2
- Storage Temperature Range
- 5 to 140 F (-15 to 60 C)
- Storage Humidity Range
- 0% to 90% RH, Non-Condensing
Max Supported Color Depth24-bit True Color
Chroma Sub Sampling4:4:4
Displayport Specification1.4
Operating Temperature Range14 to 122 F (-10 to 50 C)
Operating Humidity Range0% to 90% RH, Non-Condensing
Material
- Product Type
- Passive Cable
- Color
- Black
- Material of Construction
- PVC
- Connector Plating
- Gold
TechnologyDisplayPort
Connector ColorBlue
Cable Jacket RatingVW-1
Reference
- Product Warranty Period
- Lifetime limited warranty
