3M 7000006139 3M™ Corrosion Protection Kit CPT-1/2, Cable Min. O.D. 0.50 in (13 mm), Connector Max. O.D. 1.60 in (41 mm), 10/case
- MPN: 7000006139
- UPC: 054007430216
- PPN: MMM-CPT-1/2
CAD
$96.56
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

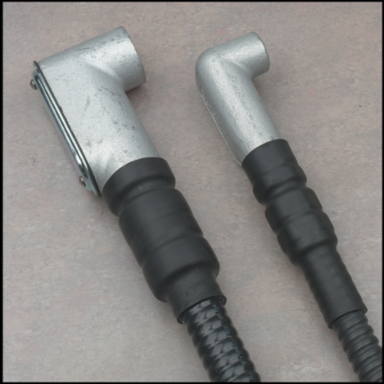

3M™ Cold Shrink Corrosion Protection Kit CPT Series are designed to provide a quick and easy method for protecting bulkhead termination connectors from the corrosive influences of wet and salt-fog installation environments.
Features
- Designed to provide protection for bulkhead termination connectors
- Offers protection from wet and salt-fog installation environments
- Ideal for use in standard and hazardous locations
- Insulator is formulated with EPDM rubber which contains no chlorides or sulfur
- Provides tight sealing between NPT fitting threads and the enclosure using mastic strips
- Includes an insulator assembly, mastic seal strip pack and instruction sheet
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Maximum Cable Diameter (Imperial)
- 1.598
- Maximum Cable Diameter (Metric)
- 40.6
- Minimum Cable Diameter (Imperial)
- 0.5
- Minimum Cable Diameter (Metric)
- 12.7
- Cable Minimum Outside Diameter
- 0.50 in
- Connector Maximum Installed Length
- 4.50 in
- Connector Maximum Outside Diameter (Metric)
- 40.6 mm
- Product Type
- Cold Shrink
- Shelf Life
- 1800
- Units per Case
- 10.0
MaterialEPDM Rubber
Maximum Cable Diameter (Imperial) UOMin
Maximum Cable Diameter (Metric) UOMmm
Minimum Cable Diameter (Imperial) UOMin
Minimum Cable Diameter (Metric) UOMmm
Cable Minimum Outside Diameter (Metric)12.7 mm
Connector Maximum Outside Diameter1.60 in
Maximum Cable Outside Diameter (Metric)12,7 mm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Splice TypeCold Shrink
