3M 7100007253 3M™ Corrosion Protection Kit CPT-2 1/2, Cable Min. O.D. 1.97 in (50 mm), Connector Max. O.D. 4.30 in (109 mm), 5/case

MPN: 7100007253
UPC: 054007430278
PPN: MMM-CPT-2-1/2

$394.44

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

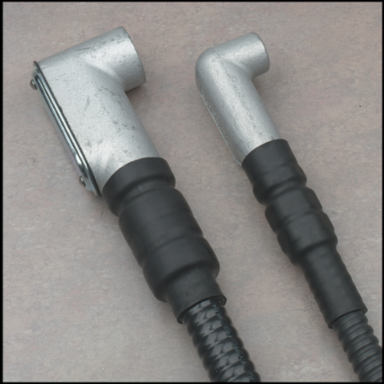

3M™ Cold Shrink Corrosion Protection Kit CPT Series are designed to provide a quick and easy method for protecting bulkhead termination connectors from the corrosive influences of wet and salt-fog installation environments.

Features

Designed to provide protection for bulkhead termination connectors
Offers protection from wet and salt-fog installation environments
Ideal for use in standard and hazardous locations
Insulator is formulated with EPDM rubber which contains no chlorides or sulfur
Provides tight sealing between NPT fitting threads and the enclosure using mastic strips
Includes an insulator assembly, mastic seal strip pack and instruction sheet

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Maximum Cable Diameter (Imperial)	4.3
Maximum Cable Diameter (Metric)	109.2
Minimum Cable Diameter (Imperial)	1.97
Minimum Cable Diameter (Metric)	50.0
Cable Minimum Outside Diameter	1.97 in
Connector Maximum Installed Length	8.50 in
Connector Maximum Outside Diameter (Metric)	109.2 mm
Product Type	Cold Shrink
Shelf Life	1800
Units per Case	5.0

Material	EPDM Rubber
Maximum Cable Diameter (Imperial) UOM	in
Maximum Cable Diameter (Metric) UOM	mm
Minimum Cable Diameter (Imperial) UOM	in
Minimum Cable Diameter (Metric) UOM	mm
Cable Minimum Outside Diameter (Metric)	50.0 mm
Connector Maximum Outside Diameter	4.30 in
Maximum Cable Outside Diameter (Metric)	50,0 mm
RoHS EU Comments	RoHS 2011/65/EU compliant without exemption
Splice Type	Cold Shrink
