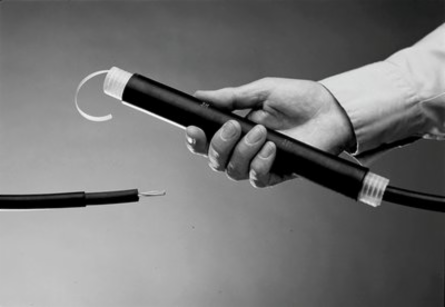

3M 5742 3M Cold Shrink Inline Splice 5742, Non-Shielded Cable, 5/8 kV, 2 AWG-300 kcmil, Cable Insul. O.D. 0.63-1.20, 1 per case

3M Cold Shrink Inline Splice 5742, Non-Shielded Cable, 5/8 kV, 2 AWG-300 kcmil, Cable Insul. O.D. 0.63-1.20, 1 per case

3M 5742 3M Cold Shrink Inline Splice 5742, Non-Shielded Cable, 5/8 kV, 2 AWG-300 kcmil, Cable Insul. O.D. 0.63-1.20, 1 per case

MPN: 5742
UPC: 054007494928
PPN: MMM-5742

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$857.60/ EA

Loading add to cart quantity...

Description

3M Cold Shrink Inline Splice 5742, Non-Shielded Cable, 5/8 kV, 2 AWG-300 kcmil, Cable Insul. O.D. 0.63-1.20, 1 per case

Specifications

Specifications

3M ID: 80610592281

Conductor Sizes: 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 4/0 AWG

Insulation/Jacket O.D. Range (metric): 16.0 - 30.5 mm

Maximum Connector Length (Cu or Al) (Metric): 108.0 mm

Number of Conductors: 1

Product Technology: Cold Shrink

RoHS 2011/65/EU Compliant: Yes

Shielding Type: Non-shielded

Trademark: 3M

Typical Splice Length (metric): 305 mm

Case Quantity1

Insulation/Jacket O.D. Range0.63 - 1.20 in

Maximum Connector Length4.25 inch

Maximum Connector Length (metric)108.0 mm

Product Series5740 Series

Product TypeSplice

RoHS EU CommentsRoHS 2011/65/EU compliant without exemption

Splice TypeInline

Typical Splice Length12 in

Voltage5/8 kV
